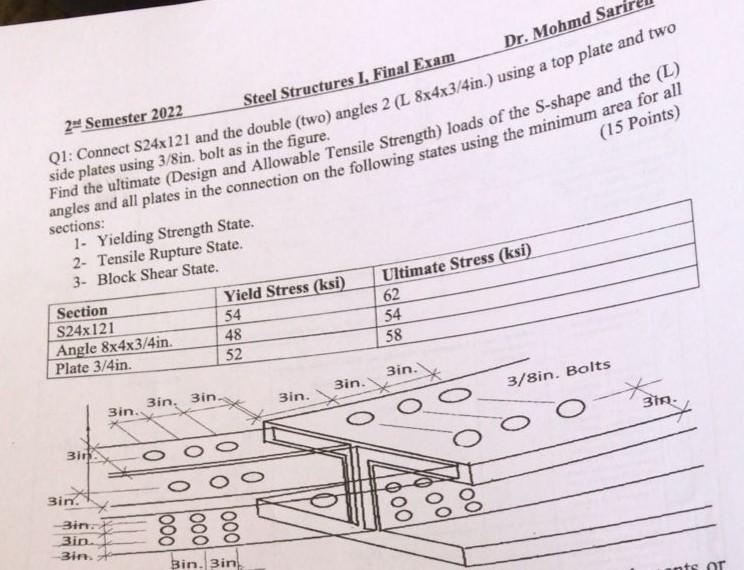

Dr. Mohmd Sari 2nd Semester 2022 Steel Structures I. Final Exam Q1: Connect S24x121 and the double (two) angles 2 (L 8x4x3/4in.) using a top plate and two side plates using 3/8in. bolt as in the figure. Find the ultimate (Design and Allowable Tensile Strength) loads of the S-shape and the (L) angles and all plates in the connection on the following states using the minimum area for all (15 Points) sections: 1- Yielding Strength State. 2- Tensile Rupture State. 3- Block Shear State. Yield Stress (ksi) Ultimate Stress (ksi) 54 62 48 54 52 58 3in. 3in. Section S24x121 Angle 8x4x3/4in. Plate 3/4in. 3in. 3in 3in. -Bin 3in 3in. * 3in, 3in. POO OO Bin. 3in 3in. 1000 O 88 3/8in. Bolts O 31A. ants of
