QUESTION 2 Calculate the design tensile resistance of a single 70x70x8mm equal leg angle iron member of grade S355JR ste

Post by answerhappygod »

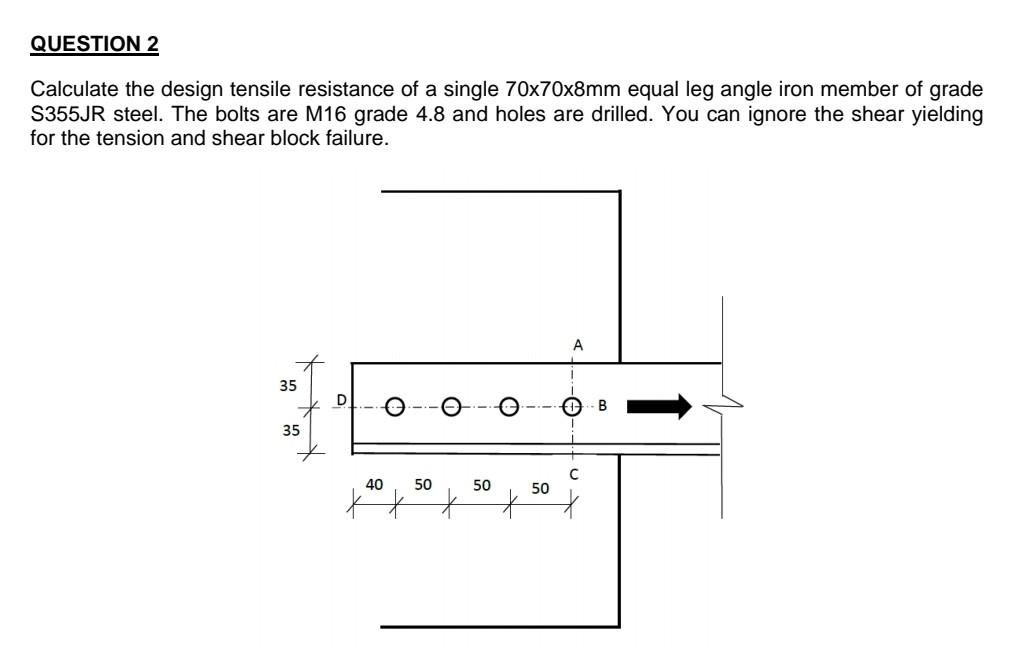

Question 2 Calculate The Design Tensile Resistance Of A Single 70x70x8mm Equal Leg Angle Iron Member Of Grade S355jr Ste 1
Question 2 Calculate The Design Tensile Resistance Of A Single 70x70x8mm Equal Leg Angle Iron Member Of Grade S355jr Ste 1 (43.02 KiB) Viewed 21 times
QUESTION 2 Calculate the design tensile resistance of a single 70x70x8mm equal leg angle iron member of grade S355JR steel. The bolts are M16 grade 4.8 and holes are drilled. You can ignore the shear yielding for the tension and shear block failure. A 35 35 D 40 * 50 50 50 B ↑
