Plate is connected to the colum using fillet welds as shown. The size of weld is 12 mm. Determine the following: Locate

Post by answerhappygod »

Plate Is Connected To The Colum Using Fillet Welds As Shown The Size Of Weld Is 12 Mm Determine The Following Locate 1
Plate Is Connected To The Colum Using Fillet Welds As Shown The Size Of Weld Is 12 Mm Determine The Following Locate 1 (35.43 KiB) Viewed 15 times

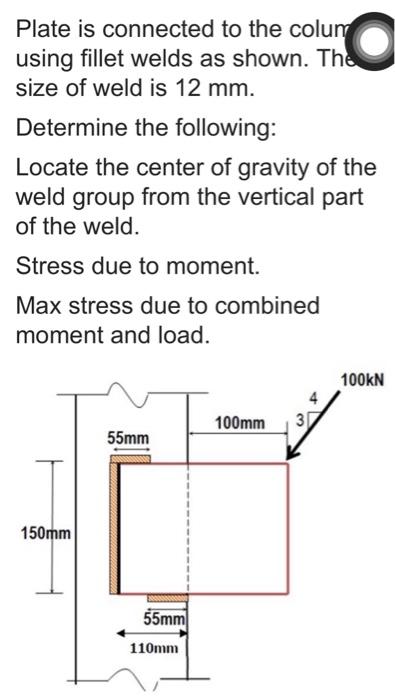

Plate is connected to the colum using fillet welds as shown. The size of weld is 12 mm. Determine the following: Locate the center of gravity of the weld group from the vertical part of the weld. Stress due to moment. Max stress due to combined moment and load. 100mm 3 55mm 150mm 55mm 110mm 100KN
