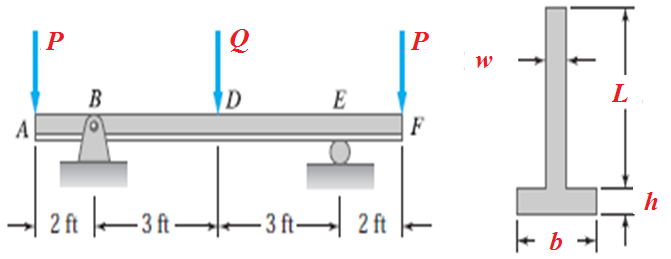

For the beam shown, calculate the magnitude of the bending
stress (in psi) at a point 0.96 in from the bottom of the beam on a
section 2.14 feet to the right of B if P = 2285 lb, Q = 8323 lb, w
= 1.41 in, L = 7.83 in, b = 3.92 in, and h = 1.46 in. Round off the
final answer to two decimal places.
For The Beam Shown Calculate The Magnitude Of The Bending Stress In Psi At A Point 0 96 In From The Bottom Of The Bea 1 (30.5 KiB) Viewed 17 times
P B D E 2 ft 3 ft 3 ft 2 ft P F W |+b+ L h
