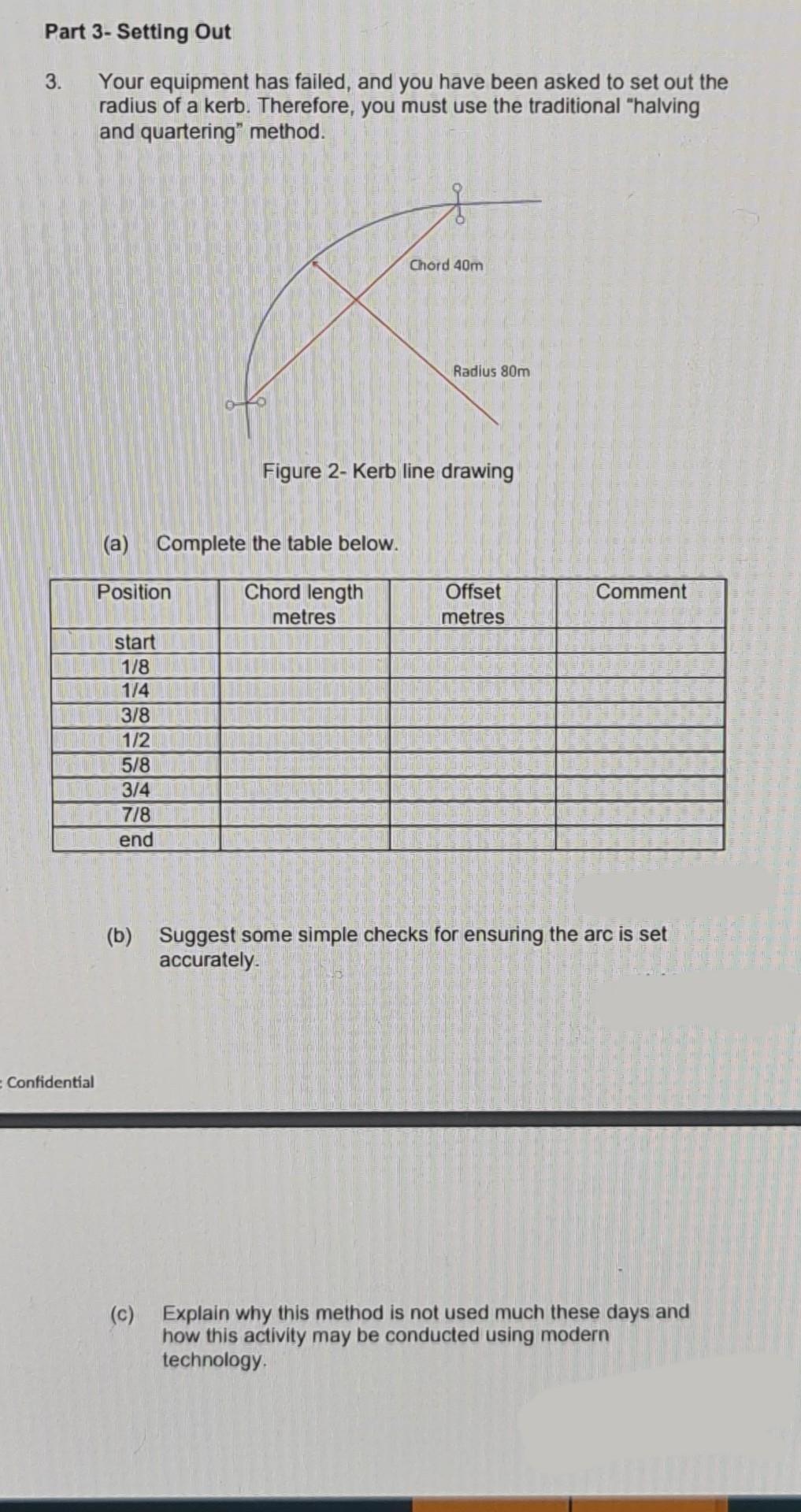

Part 3-Setting Out 3. Your equipment has failed, and you have been asked to set out the radius of a kerb. Therefore, you

[answerhappygod]

Part 3 Setting Out 3 Your Equipment Has Failed And You Have Been Asked To Set Out The Radius Of A Kerb Therefore You 1 (234.04 KiB) Viewed 25 times

Part 3-Setting Out 3. Your equipment has failed, and you have been asked to set out the radius of a kerb. Therefore, you must use the traditional "halving and quartering method. Chord 40m Radius 80m Figure 2- Kerb line drawing (a) Complete the table below. Position Offset Comment Chord length metres metres start 1/8 - 1/4 3/8 1/2 5/8 3/4 7/8 end Suggest some simple checks for ensuring the arc is set accurately. (c) Explain why this method is not used much these days and how this activity may be conducted using modern technology. = Confidential (b)
