Problem 4 An open-topped tank with square bottom, 0.9 m on a side is 0.60 m high. It floats in water. A steel block (s=7

[answerhappygod]

Problem 4 An Open Topped Tank With Square Bottom 0 9 M On A Side Is 0 60 M High It Floats In Water A Steel Block S 7 1 (366.17 KiB) Viewed 24 times

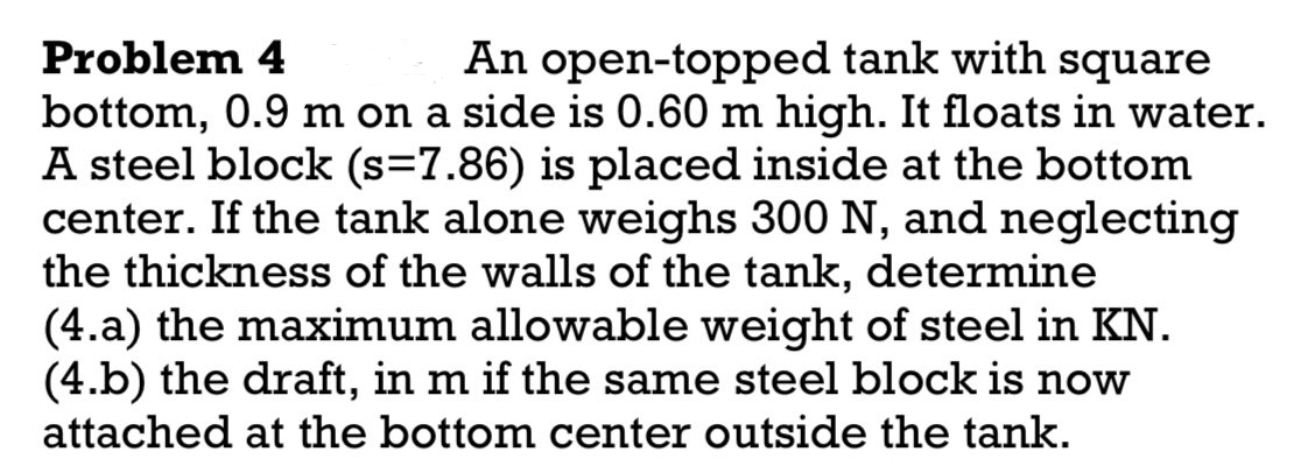

Problem 4 An open-topped tank with square bottom, 0.9 m on a side is 0.60 m high. It floats in water. A steel block (s=7.86) is placed inside at the bottom center. If the tank alone weighs 300 N, and neglecting the thickness of the walls of the tank, determine (4.a) the maximum allowable weight of steel in KN. (4.b) the draft, in m if the same steel block is now attached at the bottom center outside the tank.
