Solve the following problems using (NSCP 2010/15) 1. Given the following properties of a reinforced beam: b = 300 mm d =

[answerhappygod]

Solve The Following Problems Using Nscp 2010 15 1 Given The Following Properties Of A Reinforced Beam B 300 Mm D 1 (53.17 KiB) Viewed 21 times

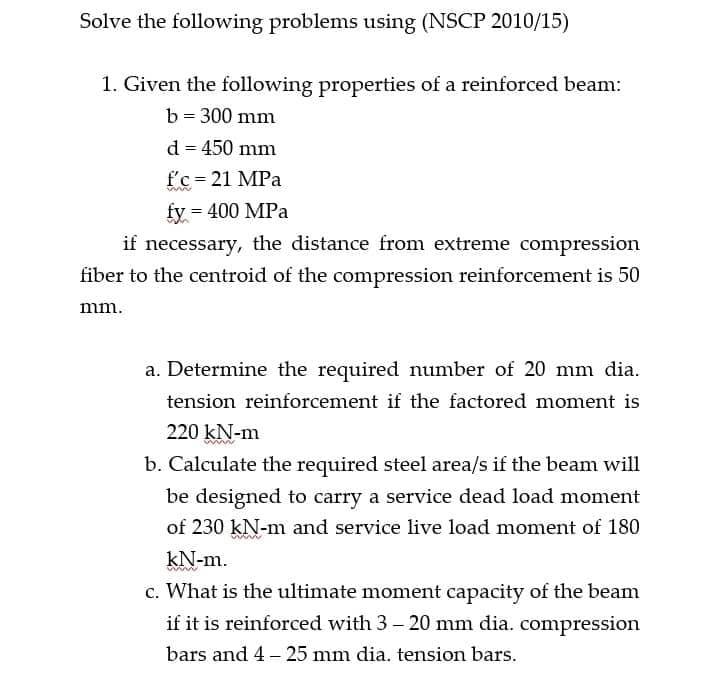

Solve the following problems using (NSCP 2010/15) 1. Given the following properties of a reinforced beam: b = 300 mm d = 450 mm f'c = 21 MPa www fy = 400 MPa if necessary, the distance from extreme compression fiber to the centroid of the compression reinforcement is 50 mm. a. Determine the required number of 20 mm dia. tension reinforcement if the factored moment is 220 kN-m www b. Calculate the required steel area/s if the beam will be designed to carry a service dead load moment of 230 kN-m and service live load moment of 180 kN-m. www. c. What is the ultimate moment capacity of the beam if it is reinforced with 3-20 mm dia. compression bars and 4 - 25 mm dia. tension bars.
