Use your creativity to show:
i. axis and plane
ii. stress distribution on each load application point at
respective plane
iii. resultant stresses due to assign problem
Use Your Creativity To Show I Axis And Plane Ii Stress Distribution On Each Load Application Point At Respective Plan 1 (250.77 KiB) Viewed 42 times

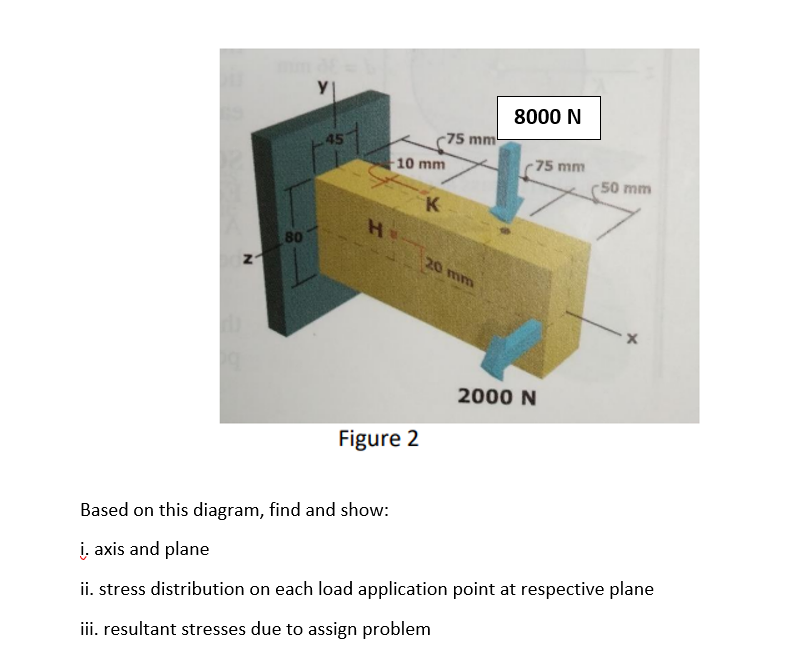

2₁ 80 45 -75 mm 10 mm K HU 20 mm 8000 N -75 mm (50 mm 2000 N Figure 2 Based on this diagram, find and show: i. axis and plane ii. stress distribution on each load application point at respective plane iii. resultant stresses due to assign problem
