Question 4 Figure Q4 shows the beam supports a distributed live load of 2 kN/m and a single concentrated load of 8 kN. T

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899603
Joined: Mon Aug 02, 2021 8:13 am

Question 4 Figure Q4 shows the beam supports a distributed live load of 2 kN/m and a single concentrated load of 8 kN. T

Post by answerhappygod »

Question 4 Figure Q4 Shows The Beam Supports A Distributed Live Load Of 2 Kn M And A Single Concentrated Load Of 8 Kn T 1
Question 4 Figure Q4 Shows The Beam Supports A Distributed Live Load Of 2 Kn M And A Single Concentrated Load Of 8 Kn T 1 (29.46 KiB) Viewed 22 times

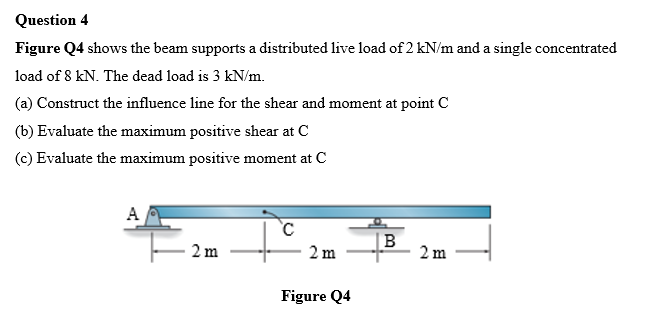

Question 4 Figure Q4 shows the beam supports a distributed live load of 2 kN/m and a single concentrated load of 8 kN. The dead load is 3 kN/m. (a) Construct the influence line for the shear and moment at point C (b) Evaluate the maximum positive shear at C (c) Evaluate the maximum positive moment at C A C B 2m 2m 2m Figure Q4
