A F 1 25 M M W C B 0 75 M 0 5 M 0 5 M 1 (26.17 KiB) Viewed 16 times

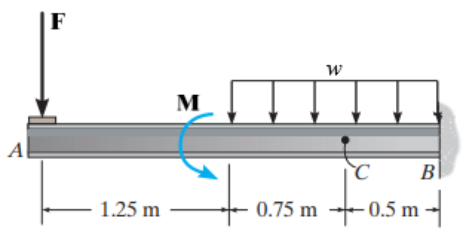

Suppose
that F = 7 kN, w = 4 kN/m, and M
= 16 kN⋅m in. Follow the sign convention.
Determine the moment acting at point C.
Express your answer to three significant figures and include the
appropriate units.
A F 1.25 m M W C B 0.75 m +0.5 m -0.5 m-
