Draw the shear and moment diagram. Use equation method. Determine: a) Maximum Shear b) Maximum Moment c) Location of Zer

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899603
Joined: Mon Aug 02, 2021 8:13 am

Draw the shear and moment diagram. Use equation method. Determine: a) Maximum Shear b) Maximum Moment c) Location of Zer

Post by answerhappygod »

Draw The Shear And Moment Diagram Use Equation Method Determine A Maximum Shear B Maximum Moment C Location Of Zer 1
Draw The Shear And Moment Diagram Use Equation Method Determine A Maximum Shear B Maximum Moment C Location Of Zer 1 (30.83 KiB) Viewed 15 times

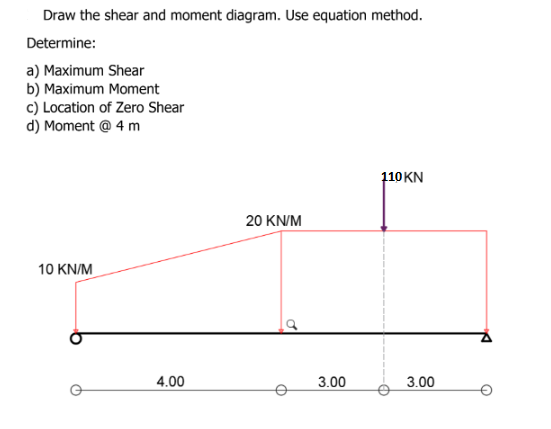

Draw the shear and moment diagram. Use equation method. Determine: a) Maximum Shear b) Maximum Moment c) Location of Zero Shear d) Moment @ 4 m 110 KN 20 KN/M 10 KN/M 4.00 4 3.00 -4 3.00
