Question 3 3.1 Draw a neat, labelled sketch of the cross section through a dual carriageway of a 4- lane rural road with

[answerhappygod]

Question 3 3 1 Draw A Neat Labelled Sketch Of The Cross Section Through A Dual Carriageway Of A 4 Lane Rural Road With 1 (32.91 KiB) Viewed 30 times

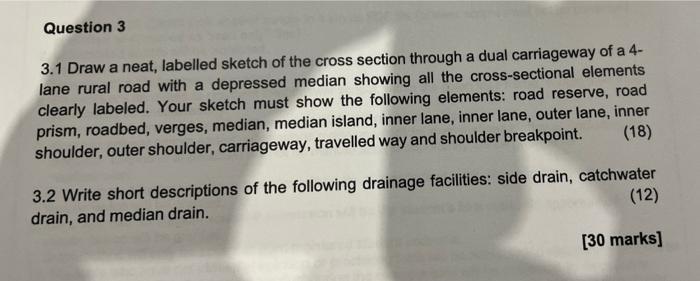

Question 3 3.1 Draw a neat, labelled sketch of the cross section through a dual carriageway of a 4- lane rural road with a depressed median showing all the cross-sectional elements clearly labeled. Your sketch must show the following elements: road reserve, road prism, roadbed, verges, median, median island, inner lane, inner lane, outer lane, inner (18) shoulder, outer shoulder, carriageway, travelled way and shoulder breakpoint. 3.2 Write short descriptions of the following drainage facilities: side drain, catchwater drain, and median drain. (12) [30 marks]
