Question 1 [61] Using the direct stiffness method for the beam subject to the distributed load as given in Figure 1, det

Post by answerhappygod »

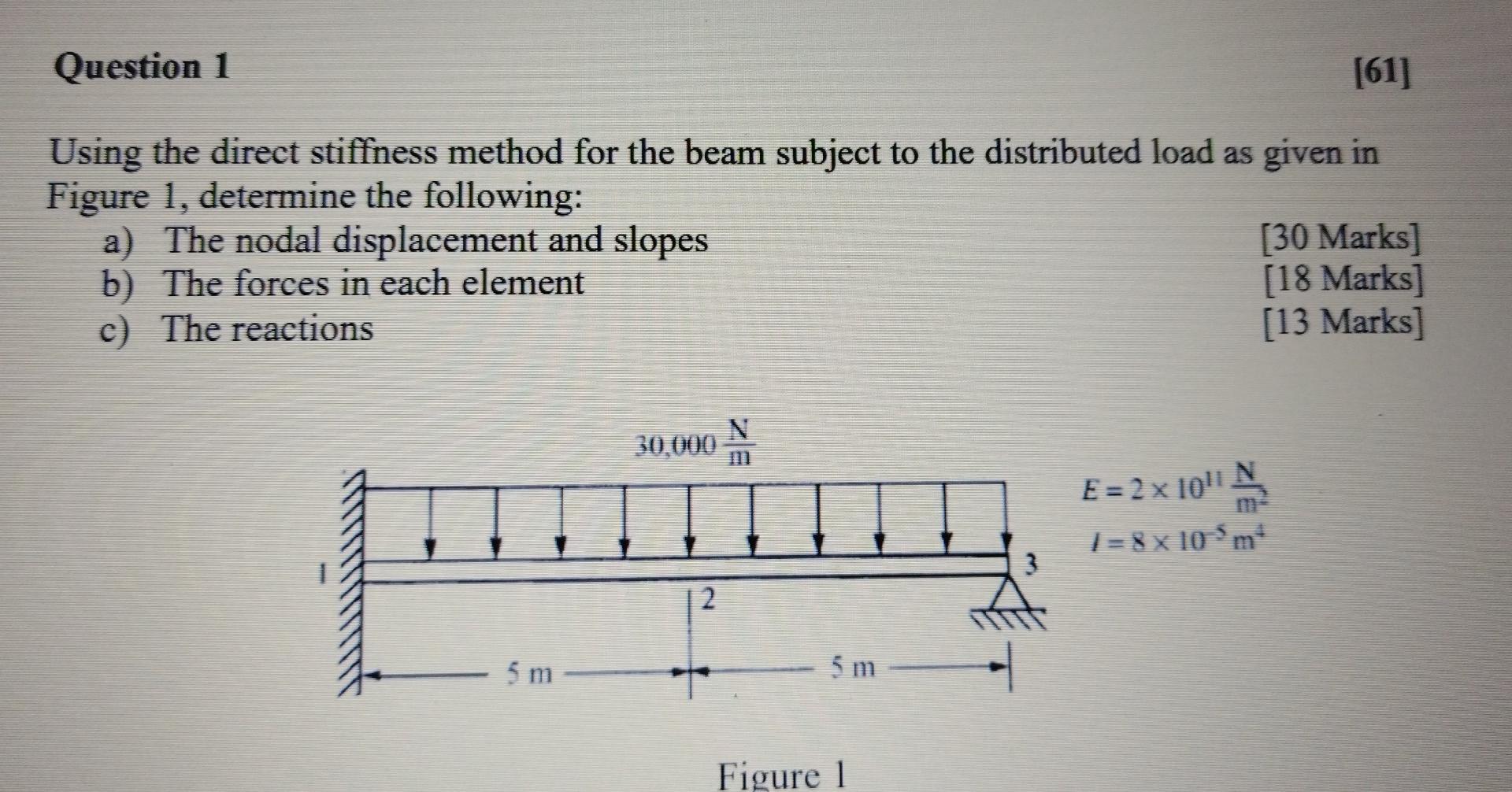

Question 1 61 Using The Direct Stiffness Method For The Beam Subject To The Distributed Load As Given In Figure 1 Det 1
Question 1 61 Using The Direct Stiffness Method For The Beam Subject To The Distributed Load As Given In Figure 1 Det 1 (308.69 KiB) Viewed 23 times
Question 1 [61] Using the direct stiffness method for the beam subject to the distributed load as given in Figure 1, determine the following: a) The nodal displacement and slopes [30 Marks] [18 Marks] b) The forces in each element c) The reactions [13 Marks] 30,000 Ţ E=2×10¹¹ N 1=8x105 m² 2 5 m Figure 1 5 m
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
