Question:- Find the currents in the various branches of the circuit shown in Fig by nodal analysis. 20 Ω 13 15 A B 10 Ω

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899603
Joined: Mon Aug 02, 2021 8:13 am

Question:- Find the currents in the various branches of the circuit shown in Fig by nodal analysis. 20 Ω 13 15 A B 10 Ω

Post by answerhappygod »

1
1 (46.93 KiB) Viewed 14 times

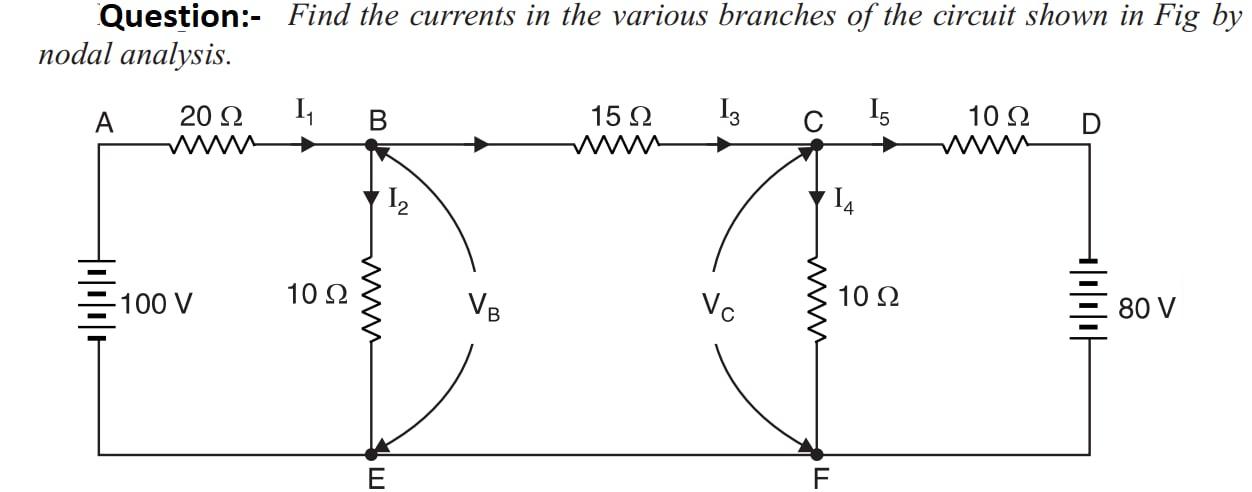

Question:- Find the currents in the various branches of the circuit shown in Fig by nodal analysis. 20 Ω 13 15 A B 10 Ω D 15 Ω wwww 10 Ω -100 V 10 Ω 1₂ E VB Vc F 블루 80 V
