A slab having thickness h = low is exposed to a fluid having temperature Too and convective Coefficient h from one side,

[answerhappygod]

A Slab Having Thickness H Low Is Exposed To A Fluid Having Temperature Too And Convective Coefficient H From One Side 1 (50.23 KiB) Viewed 28 times

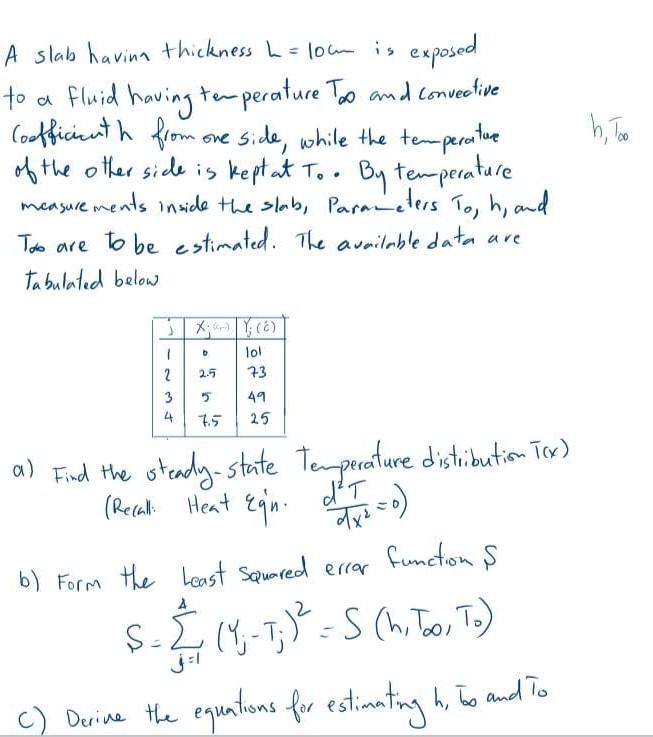

A slab having thickness h = low is exposed to a fluid having temperature Too and convective Coefficient h from one side, while the temperature of the other side is kept at T.. By temperature measurements inside the slab, Parameters To, h, and To are to be estimated. The available data are Tabulated below J X(-) ; (6) b lol 2 2.5 73 3 49 4 7.5 25 a) Find the steady-state temperature distribution T(x) (Recall Heat Egn. d²T √x²=0) function S b) Form the Least Squared error S = — (4,₁-T;) ² = S (h, To, To) 2 j=1 c) Derive the equentions for estimating h, to and To h, Too
