The Chart Shows A Selection Chart For Selecting For Minimum Mass With Multiple Constraints I E Stiffness Limited Design 1 (121.32 KiB) Viewed 27 times

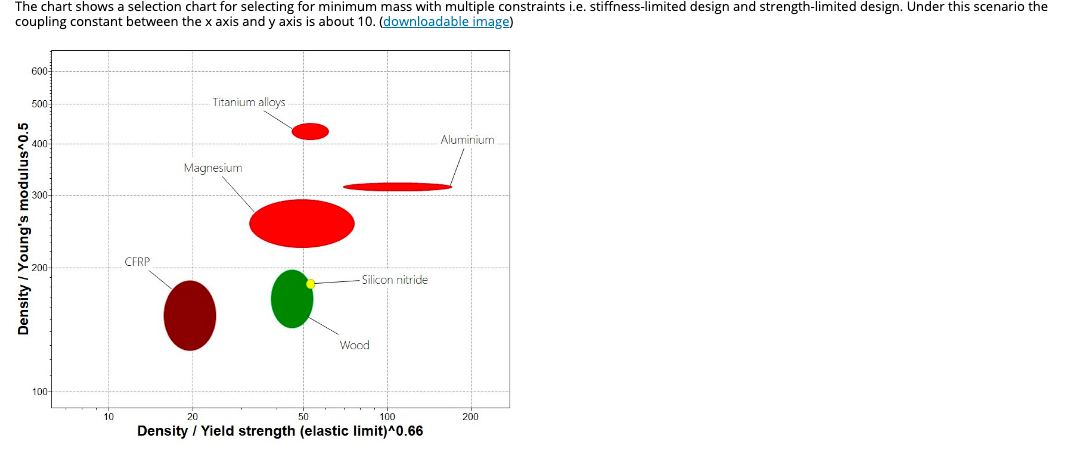

The chart shows a selection chart for selecting for minimum mass with multiple constraints i.e. stiffness-limited design and strength-limited design. Under this scenario the coupling constant between the x axis and y axis is about 10. (downloadable image) 600 Titanium alloys 500 Aluminium 400 Density / Young's modulus^0.5 100- 10 CFRP Magnesium -Silicon nitride Wood 50 100 Density / Yield strength (elastic limit)^0.66 200
Complete the following paragraph such that it correctly summarises the outcome of this scenario: A coupling line and box selection indicates that the best choice of material for this scenario is chosen, would be limited by the constraint. ✓and the worst choice is ✓. Wood, if it were
