1:٥٢ moodle.nct.edu.om A Brass specimen is subjected to a Tensile test in a laboratory. The following data obtained are:

[answerhappygod]

1 (33.08 KiB) Viewed 35 times

2 (18.93 KiB) Viewed 35 times

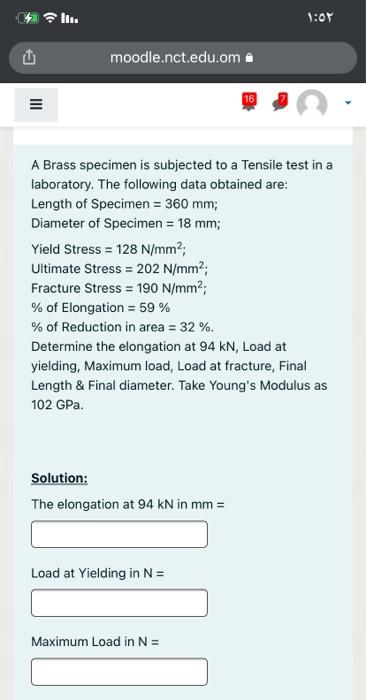

1:٥٢ moodle.nct.edu.om A Brass specimen is subjected to a Tensile test in a laboratory. The following data obtained are: Length of Specimen = 360 mm; Diameter of Specimen = 18 mm; Yield Stress = 128 N/mm²; Ultimate Stress = 202 N/mm²; Fracture Stress = 190 N/mm²; % of Elongation = 59 % % of Reduction in area = 32 %. Determine the elongation at 94 kN, Load at yielding, Maximum load, Load at fracture, Final Length & Final diameter. Take Young's Modulus as 102 GPa. Solution: The elongation at 94 kN in mm = Load at Yielding in N = Maximum Load in N=

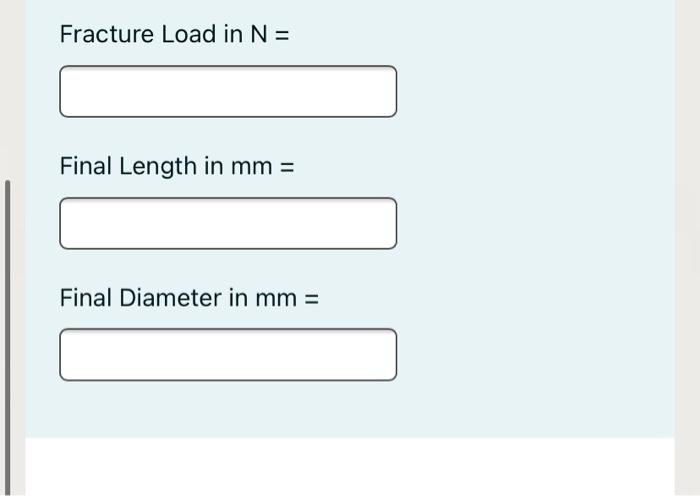

Fracture Load in N = Final Length in mm = Final Diameter in mm =
