A beam having a tee-shaped cross section is subjected to equal 17 kN-m bending moments, as shown. Assume b= 100 mm, t+=

[answerhappygod]

A Beam Having A Tee Shaped Cross Section Is Subjected To Equal 17 Kn M Bending Moments As Shown Assume B 100 Mm T 1 (73.63 KiB) Viewed 16 times

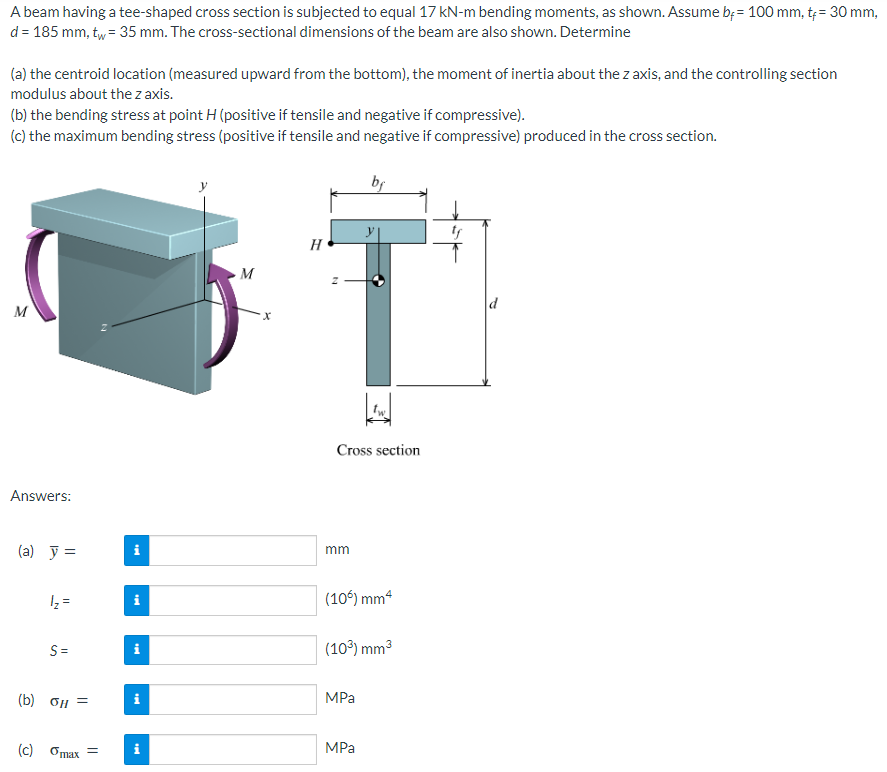

A beam having a tee-shaped cross section is subjected to equal 17 kN-m bending moments, as shown. Assume b= 100 mm, t+= 30 mm, d = 185 mm, tw = 35 mm. The cross-sectional dimensions of the beam are also shown. Determine (a) the centroid location (measured upward from the bottom), the moment of inertia about the z axis, and the controlling section modulus about the z axis. (b) the bending stress at point H (positive if tensile and negative if compressive). (c) the maximum bending stress (positive if tensile and negative if compressive) produced in the cross section. by H M M Answers: (a) y = 1₂ = !!!!! S= (b) OH = (c) Omax = tel i t X Cross section mm (106) mm² (10³) mm³ MPa MPa
