Find the moment about A, C, and F for the forces acting on the link shown below. Point C is at the center of B and D. Ta

[answerhappygod]

Find The Moment About A C And F For The Forces Acting On The Link Shown Below Point C Is At The Center Of B And D Ta 1 (38 KiB) Viewed 25 times

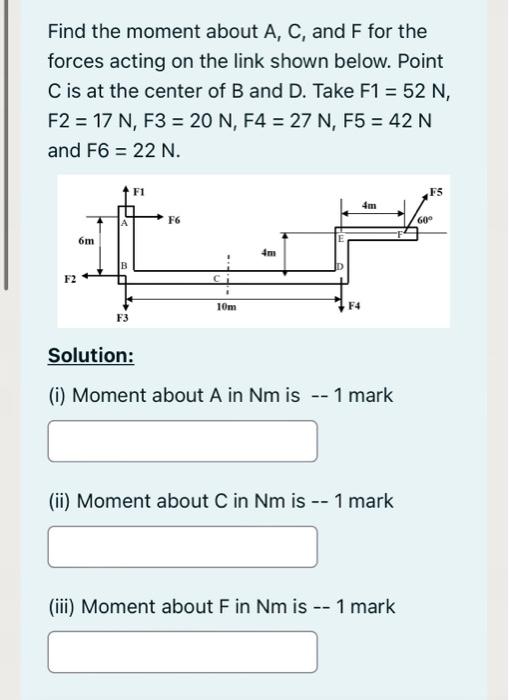

Find the moment about A, C, and F for the forces acting on the link shown below. Point C is at the center of B and D. Take F1 = 52 N, F2 = 17 N, F3 = 20 N, F4 = 27 N, F5 = 42 N and F6 = 22 N. F5 4m F6 6m 4m B F2 10m F4 Solution: (i) Moment about A in Nm is -- 1 mark (ii) Moment about C in Nm is -- 1 mark (iii) Moment about F in Nm is -- 1 mark 60⁰
