30. In the circuit shown in the figure below, three resistors are supplied by a single voltage source of 12 volts. 2.5 Κ

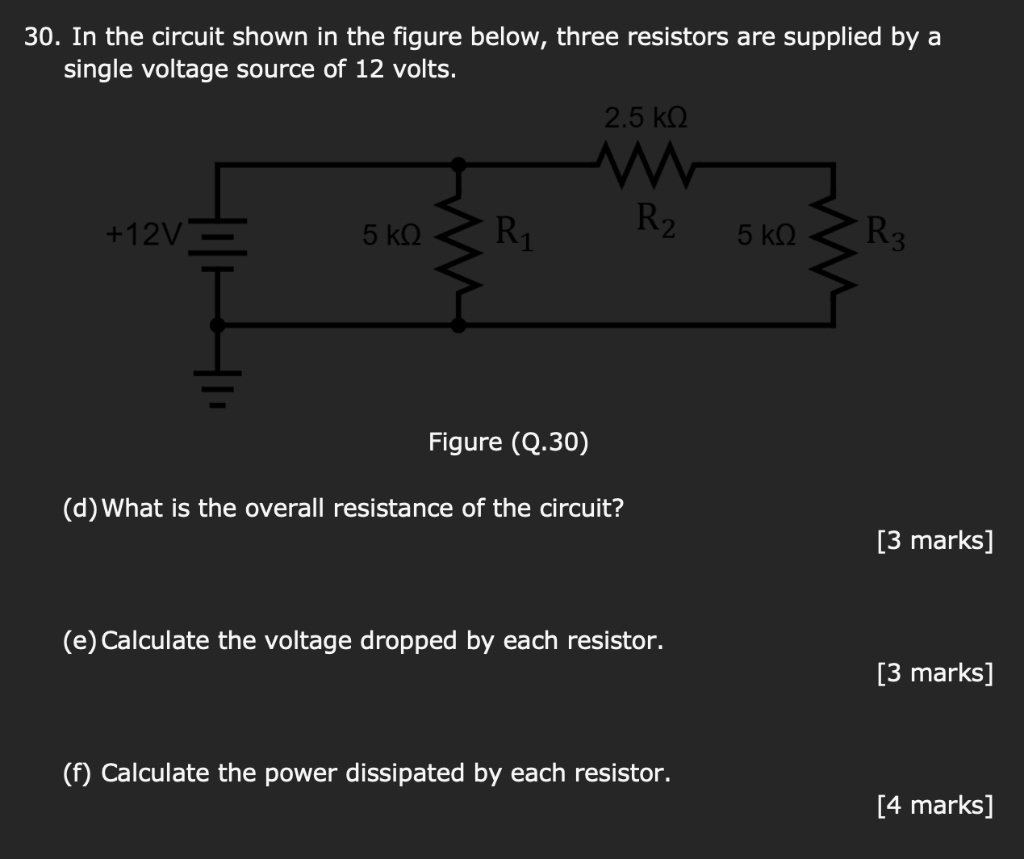

30. In the circuit shown in the figure below, three resistors are supplied by a single voltage source of 12 volts. 2.5 ΚΩ +12V R₂ 5 ΚΩ R₁ 5 ΚΩ R₂ Figure (Q.30) (d) What is the overall resistance of the circuit? (e) Calculate the voltage dropped by each resistor. (f) Calculate the power dissipated by each resistor. [3 marks] [3 marks] [4 marks]
