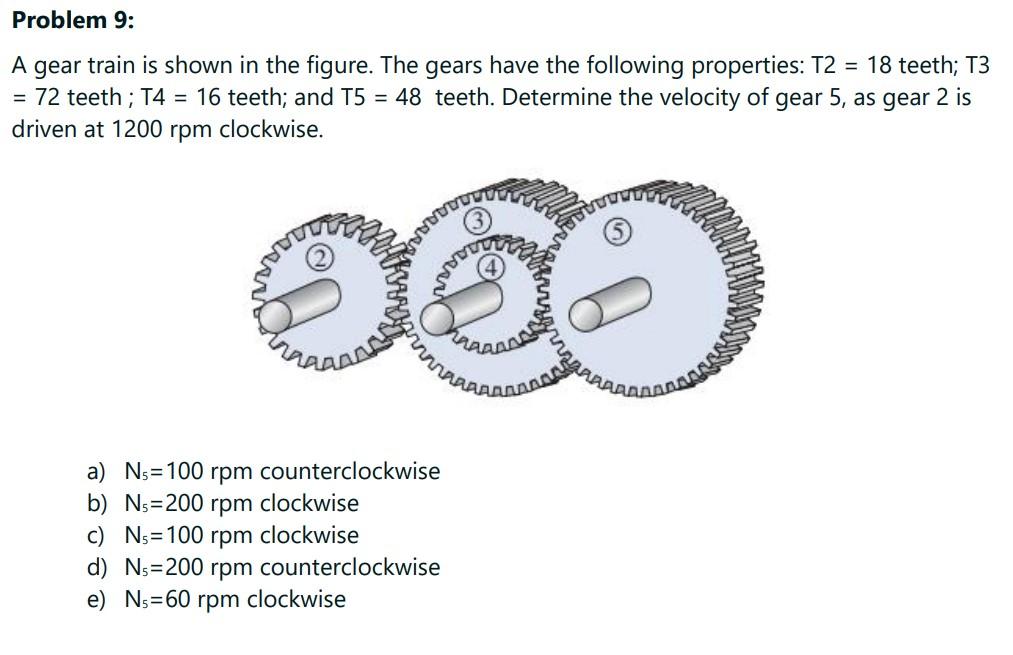

Problem 9: A gear train is shown in the figure. The gears have the following properties: T2 = 18 teeth; T3 = 72 teeth ;
-
answerhappygod
- Site Admin
- Posts: 899603
- Joined: Mon Aug 02, 2021 8:13 am
Problem 9: A gear train is shown in the figure. The gears have the following properties: T2 = 18 teeth; T3 = 72 teeth ;
Problem 9: A gear train is shown in the figure. The gears have the following properties: T2 = 18 teeth; T3 = 72 teeth ; T4 = 16 teeth; and T5 = 48 teeth. Determine the velocity of gear 5, as gear 2 is driven at 1200 rpm clockwise. 500 a) N₁ = 100 rpm counterclockwise b) N₁=200 rpm clockwise c) N₁=100 rpm clockwise d) N₁=200 rpm counterclockwise e) N₁=60 rpm clockwise
