Txy = 39.2MPa (see 3.1 An element in plane stress is subjected to stresses ax = -68.5MPa and figure). It is known that o

Post by answerhappygod »

Txy 39 2mpa See 3 1 An Element In Plane Stress Is Subjected To Stresses Ax 68 5mpa And Figure It Is Known That O 1
Txy 39 2mpa See 3 1 An Element In Plane Stress Is Subjected To Stresses Ax 68 5mpa And Figure It Is Known That O 1 (84.64 KiB) Viewed 17 times
Please solve step by step

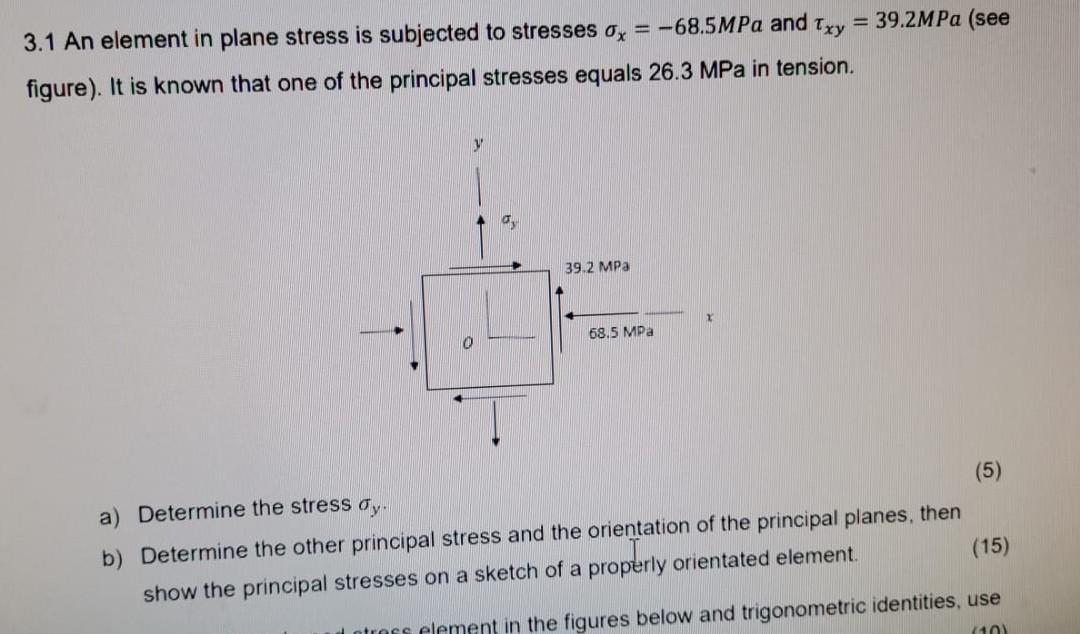

Txy = 39.2MPa (see 3.1 An element in plane stress is subjected to stresses ax = -68.5MPa and figure). It is known that one of the principal stresses equals 26.3 MPa in tension. 39.2 MPa X 68.5 MPa (5) a) Determine the stress ay. b) Determine the other principal stress and the orientation of the principal planes, then show the principal stresses on a sketch of a properly orientated element. (15) otross element in the figures below and trigonometric identities, use (10)
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
