Find the input torque applied to the link OA that is required for the mechanism to be in static equilibrium if OA = 100

Post by answerhappygod »

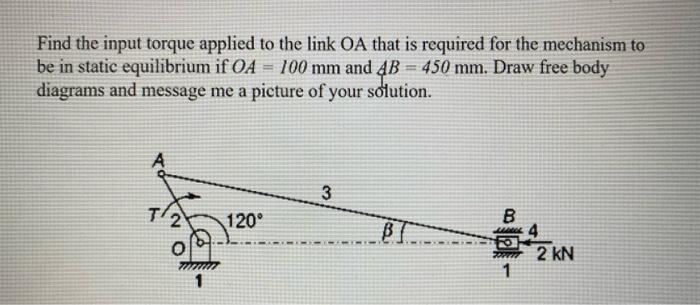

Find The Input Torque Applied To The Link Oa That Is Required For The Mechanism To Be In Static Equilibrium If Oa 100 1
Find The Input Torque Applied To The Link Oa That Is Required For The Mechanism To Be In Static Equilibrium If Oa 100 1 (37.92 KiB) Viewed 34 times
Determine the T ( torque )
Fast please
Find the input torque applied to the link OA that is required for the mechanism to be in static equilibrium if OA = 100 mm and 4B = 450 mm. Draw free body diagrams and message me a picture of your solution. 3 2 120° BT 2 KN 1
