Example 5.3: Determine the shear force and bending moment equations and plot them for a cantilever beam loaded with a mo

Post by answerhappygod »

Example 5 3 Determine The Shear Force And Bending Moment Equations And Plot Them For A Cantilever Beam Loaded With A Mo 1
Example 5 3 Determine The Shear Force And Bending Moment Equations And Plot Them For A Cantilever Beam Loaded With A Mo 1 (32.98 KiB) Viewed 26 times
Please Use Macaulay's Method

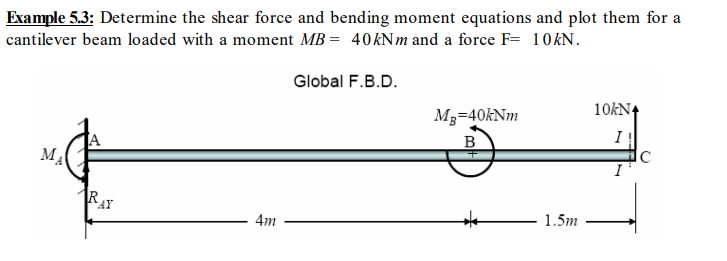

Example 5.3: Determine the shear force and bending moment equations and plot them for a cantilever beam loaded with a moment MB = 40 kNm and a force F= 10 kN. Global F.B.D. 10kN+ M₂=40kNm B MA I RAY 4m + * 1.5m
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
