A steam generator generates steam at an average rate of 50 000 kg/hour at a pressure of 3 000 kPa. The blow down is 10%

[answerhappygod]

A Steam Generator Generates Steam At An Average Rate Of 50 000 Kg Hour At A Pressure Of 3 000 Kpa The Blow Down Is 10 1 (36.49 KiB) Viewed 39 times

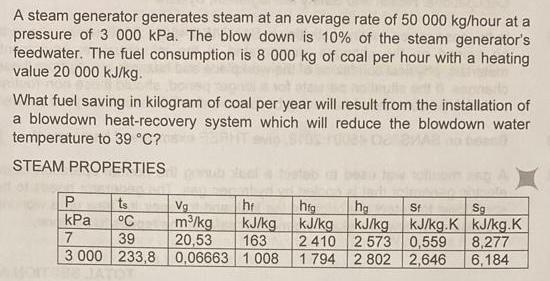

A steam generator generates steam at an average rate of 50 000 kg/hour at a pressure of 3 000 kPa. The blow down is 10% of the steam generator's feedwater. The fuel consumption is 8 000 kg of coal per hour with a heating value 20 000 kJ/kg. What fuel saving in kilogram of coal per year will result from the installation of a blowdown heat-recovery system which will reduce the blowdown water temperature to 39 °C? STEAM PROPERTIES P ts Vg hig Sf Sg hr kJ/kg kPa hg kJ/kg kJ/kg °C kJ/kg.K m³/kg 20,53 kJ/kg.K 7 39 163 2410 2 573 0,559 8,277 3 000 233,8 0,06663 1 008 1 794 2 802 2,646 6,184
