= 39.2MPa (see 3.1 An element in plane stress is subjected to stresses ox=-68.5MPa and Txy figure). It is known that one

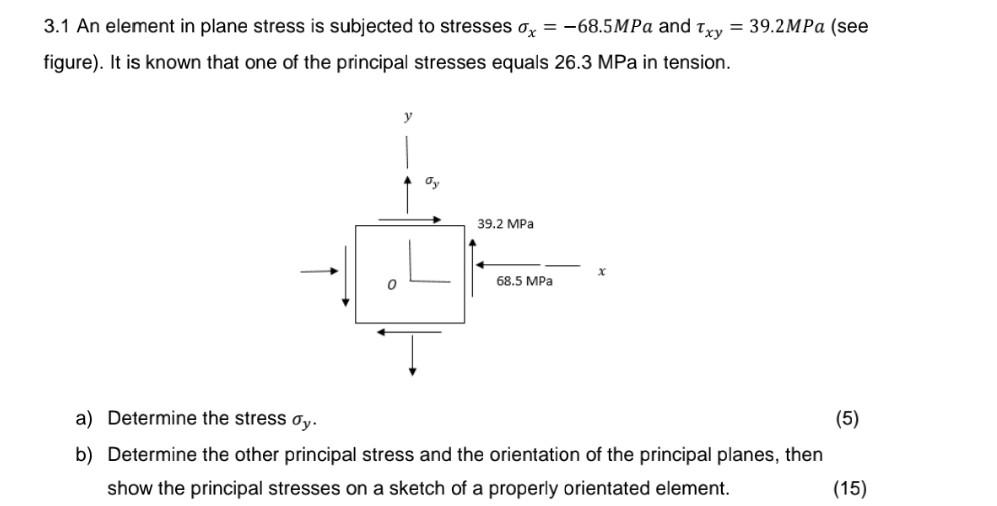

= 39.2MPa (see 3.1 An element in plane stress is subjected to stresses ox=-68.5MPa and Txy figure). It is known that one of the principal stresses equals 26.3 MPa in tension. y 39.2 MPa 68.5 MPa a) Determine the stress oy. (5) b) Determine the other principal stress and the orientation of the principal planes, then show the principal stresses on a sketch of a properly orientated element. (15) Ty
