Q2. (10 marks) A 3-phase, transmission line to be built using Falcon ACSR conductor with a manugfacture data given in th

[answerhappygod]

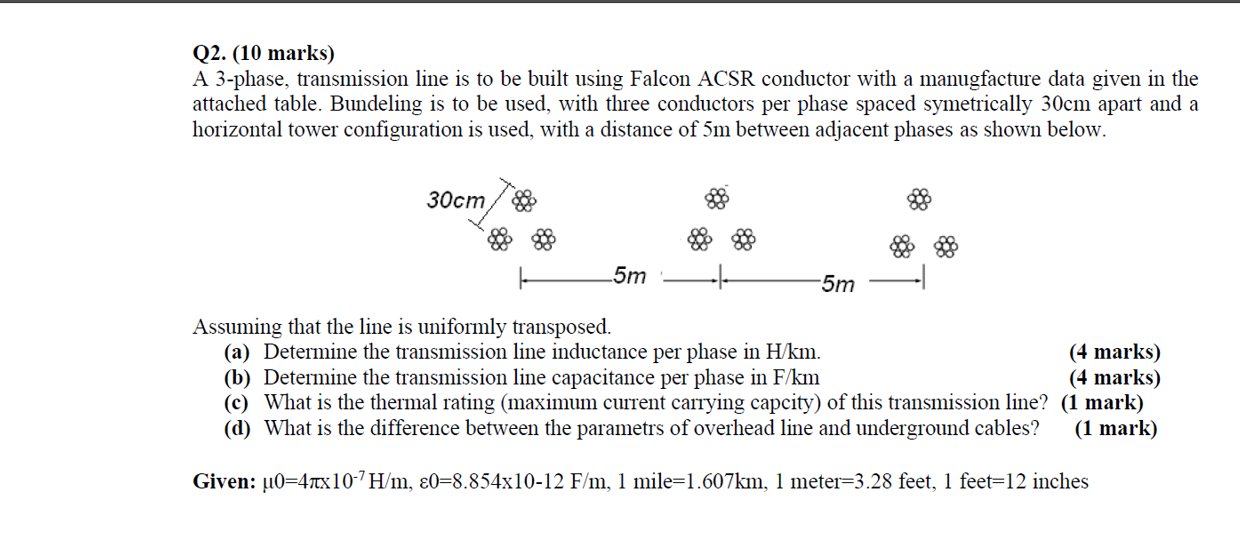

Q2 10 Marks A 3 Phase Transmission Line To Be Built Using Falcon Acsr Conductor With A Manugfacture Data Given In Th 1 (219.97 KiB) Viewed 36 times

Q2. (10 marks) A 3-phase, transmission line to be built using Falcon ACSR conductor with a manugfacture data given in the attached table. Bundeling is to be used, with three conductors per phase spaced symetrically 30cm apart and a horizontal tower configuration is used, with a distance of 5m between adjacent phases as shown below. 30cm 5m -5m Assuming that the line is uniformly transposed. (4 marks) (4 marks) (a) Determine the transmission line inductance per phase in H/km. (b) Determine the transmission line capacitance per phase in F/km (c) What is the thermal rating (maximum current carrying capcity) of this transmission line? (d) What is the difference between the parametrs of overhead line and underground cables? (1 mark) (1 mark) Given: µ0=4x10-7 H/m, 80-8.854x10-12 F/m, 1 mile-1.607km, 1 meter-3.28 feet, 1 feet-12 inches
