5. The characteristics of an Op-Amplifiers is shown in Figure 5(a) to Figure 5(d). Given Aol = 175×10³, Zin = 10 MQ, Zou
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
5. The characteristics of an Op-Amplifiers is shown in Figure 5(a) to Figure 5(d). Given Aol = 175×10³, Zin = 10 MQ, Zou

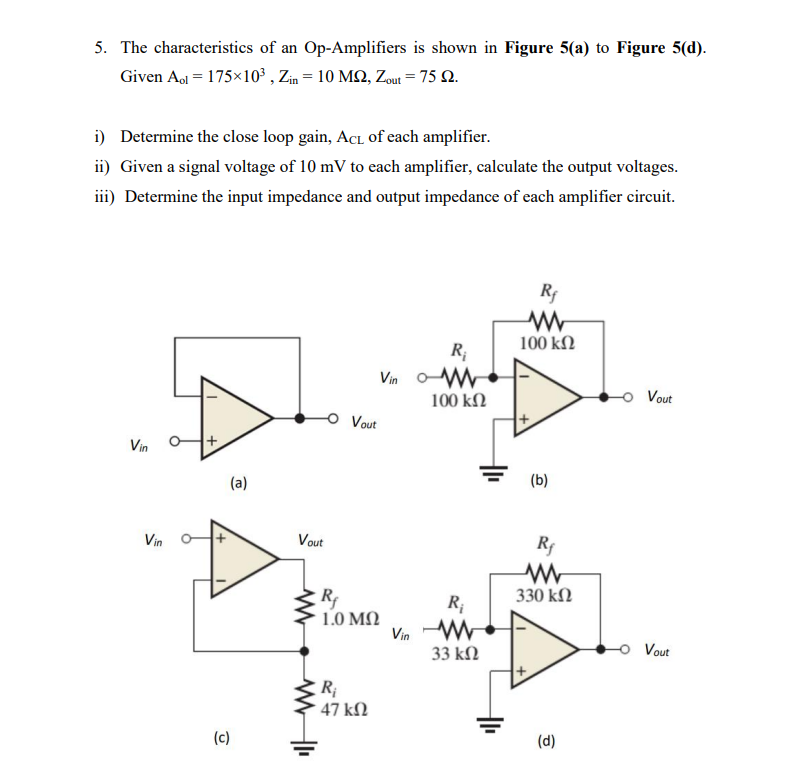

5. The characteristics of an Op-Amplifiers is shown in Figure 5(a) to Figure 5(d). Given Aol = 175×10³, Zin = 10 MQ, Zout = 75 22. i) Determine the close loop gain, ACL of each amplifier. ii) Given a signal voltage of 10 mV to each amplifier, calculate the output voltages. iii) Determine the input impedance and output impedance of each amplifier circuit. Rf 100 ΚΩ R₁ Vin Vout 100 ΚΩ Vin O (b) Vin (a) (c) Vout Vout R 1.0 ΜΩ R₁ 47 ΚΩ Vin R₁ W 33 ΚΩ Rf www 330 ΚΩ (d) Vout
