The Integrator Example: (a) Determine the rate of change of the output voltage in response to the input square wave, as

Post by answerhappygod »

The Integrator Example A Determine The Rate Of Change Of The Output Voltage In Response To The Input Square Wave As 1
The Integrator Example A Determine The Rate Of Change Of The Output Voltage In Response To The Input Square Wave As 1 (50.24 KiB) Viewed 25 times

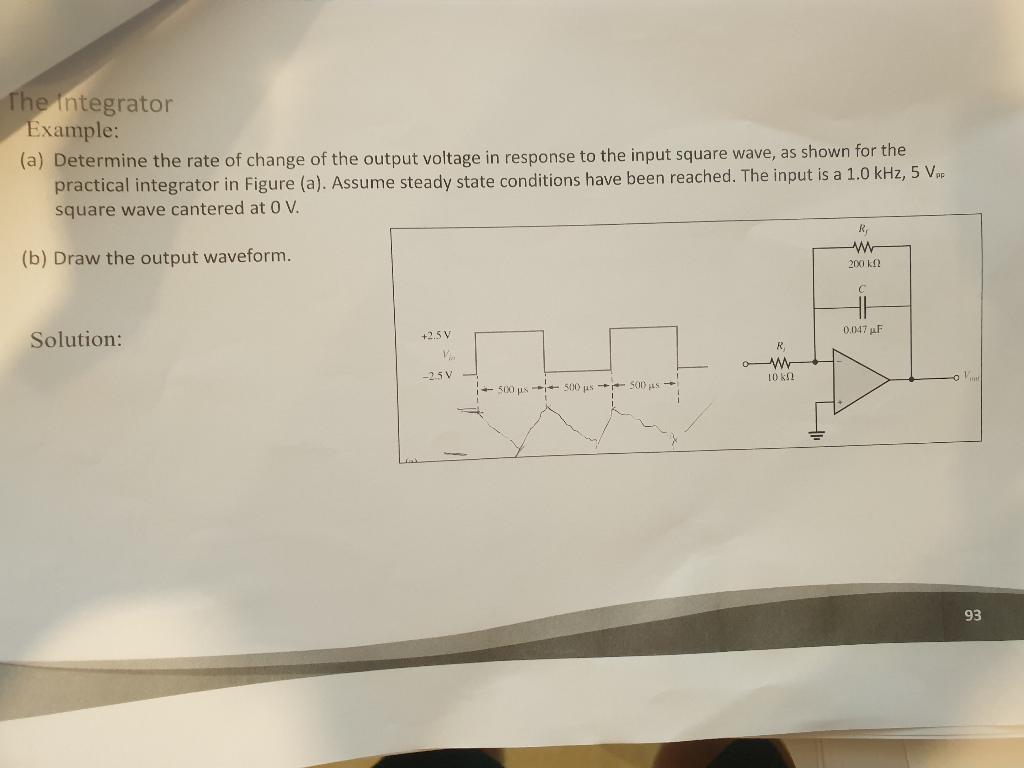

The Integrator Example: (a) Determine the rate of change of the output voltage in response to the input square wave, as shown for the practical integrator in Figure (a). Assume steady state conditions have been reached. The input is a 1.0 kHz, 5 VPP square wave cantered at 0 V. R₁ (b) Draw the output waveform. www 200 k Solution: +2.5 V 0.047 F -2.5 V 500 µs 500 µs 500 s R₁ o M 10 k 93
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
