3. Given an op-amp application as shown in Figure 3. i) State the type of amplifier configuration used in Figure 3. ii)
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
3. Given an op-amp application as shown in Figure 3. i) State the type of amplifier configuration used in Figure 3. ii)

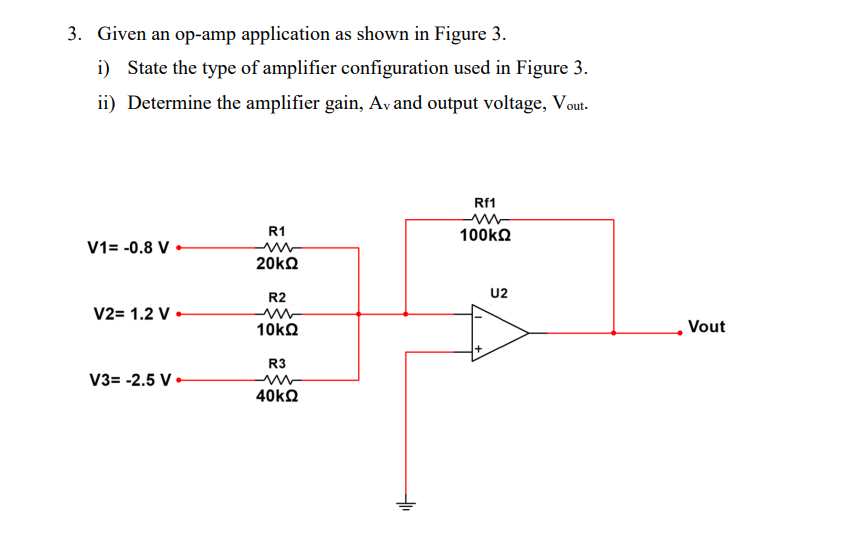

3. Given an op-amp application as shown in Figure 3. i) State the type of amplifier configuration used in Figure 3. ii) Determine the amplifier gain, Ay and output voltage, Vout. Rf1 R1 100kΩ V1 -0.8 V- 20kQ2 U2 R2 V2= 1.2 V ww 10kQ2 R3 V3= -2.5 V- 40kQ + Vout
