The Op-Amp Differentiator Example: (a) Determine the output voltage of the practical op-amp differentiator in Figure for

Post by answerhappygod »

The Op Amp Differentiator Example A Determine The Output Voltage Of The Practical Op Amp Differentiator In Figure For 1
The Op Amp Differentiator Example A Determine The Output Voltage Of The Practical Op Amp Differentiator In Figure For 1 (50.61 KiB) Viewed 22 times

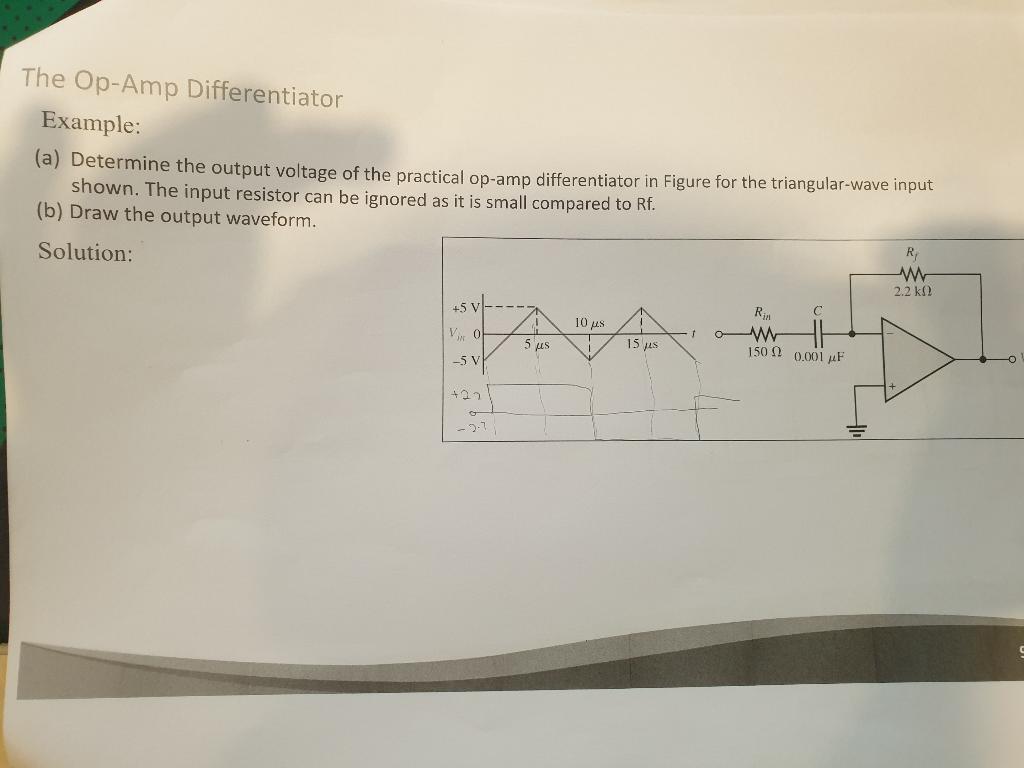

The Op-Amp Differentiator Example: (a) Determine the output voltage of the practical op-amp differentiator in Figure for the triangular-wave input shown. The input resistor can be ignored as it is small compared to Rf. (b) Draw the output waveform. R₁ Solution: www 2.2 ΚΩ +5 V Rin C 10 μs V ok o W 15 μs 150 Ω 0.001 μF -5 V +22 5 μs
