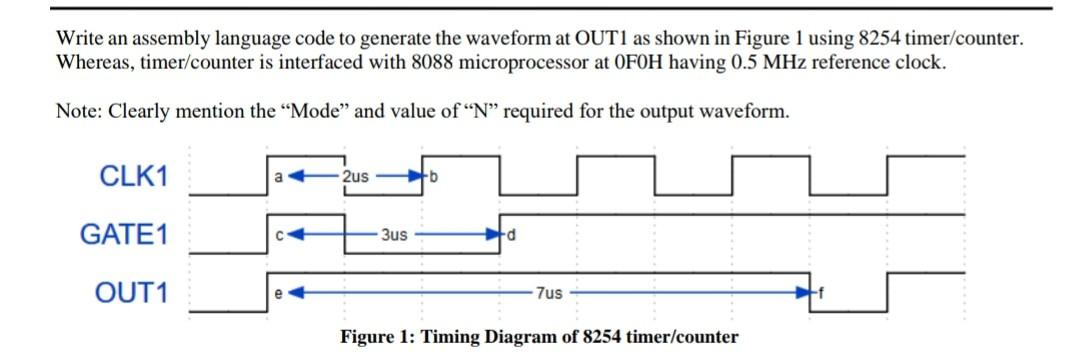

Write An Assembly Language Code To Generate The Waveform At Out1 As Shown In Figure 1 Using 8254 Timer Counter Whereas 1 (43.81 KiB) Viewed 31 times
it's microprocessor and interfacing subject problem.I need accurate solution of this problem as soon as possible.
Write an assembly language code to generate the waveform at OUT1 as shown in Figure 1 using 8254 timer/counter. Whereas, timer/counter is interfaced with 8088 microprocessor at OFOH having 0.5 MHz reference clock. Note: Clearly mention the "Mode" and value of "N" required for the output waveform. CLK1 2us b GATE1 3us OUT1 7us Figure 1: Timing Diagram of 8254 timer/counter
