Refer to the figure below. A toroid consists of a ring having an inner radius a=2cm and outer radius b=4cm. The cross-se

Post by answerhappygod »

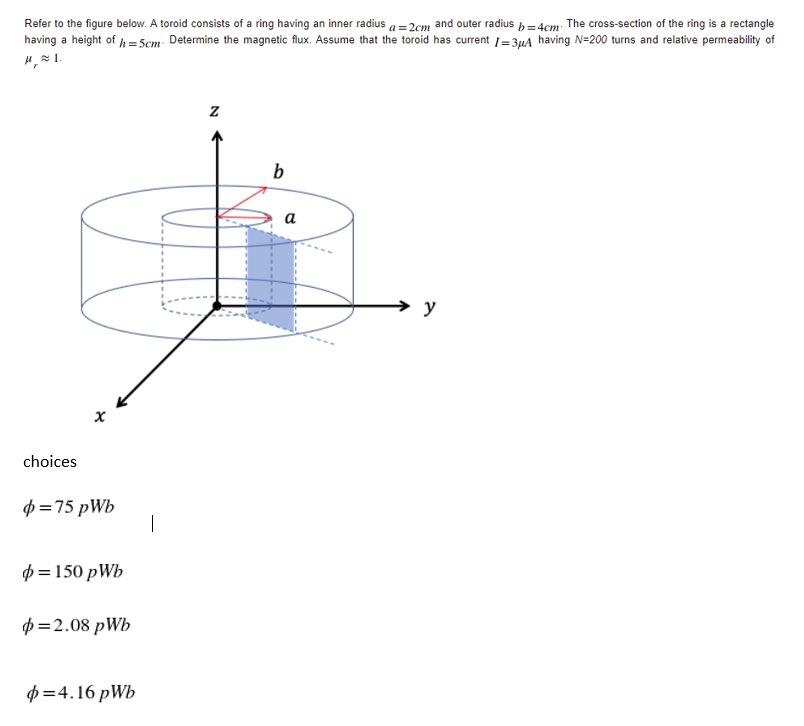

Refer To The Figure Below A Toroid Consists Of A Ring Having An Inner Radius A 2cm And Outer Radius B 4cm The Cross Se 1
Refer To The Figure Below A Toroid Consists Of A Ring Having An Inner Radius A 2cm And Outer Radius B 4cm The Cross Se 1 (31.12 KiB) Viewed 27 times
Refer to the figure below. A toroid consists of a ring having an inner radius a=2cm and outer radius b=4cm. The cross-section of the ring is a rectangle having a height of h=5cm Determine the magnetic flux. Assume that the toroid has current /=3μA having N=200 turns and relative permeability of 4,1 Z X choices p=75 pWb p = 150 pWb p=2.08 pWb p=4.16pWb b a
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
