Question 4 Consider the following circuit. Using source transformation, determine I Circuit Parameters V₂ ww Vs = 18 V R

Post by answerhappygod »

Question 4 Consider The Following Circuit Using Source Transformation Determine I Circuit Parameters V Ww Vs 18 V R 1
Question 4 Consider The Following Circuit Using Source Transformation Determine I Circuit Parameters V Ww Vs 18 V R 1 (21.22 KiB) Viewed 16 times
Question 4 Consider The Following Circuit Using Source Transformation Determine I Circuit Parameters V Ww Vs 18 V R 2
Question 4 Consider The Following Circuit Using Source Transformation Determine I Circuit Parameters V Ww Vs 18 V R 2 (21.22 KiB) Viewed 16 times

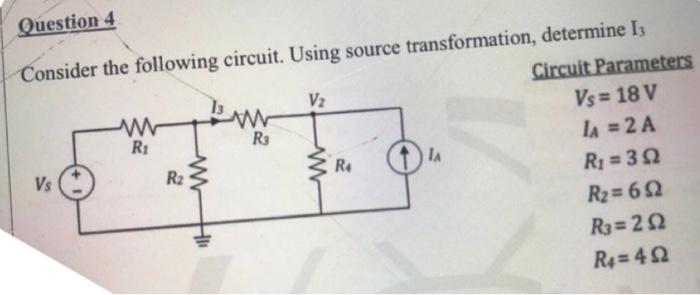

Question 4 Consider the following circuit. Using source transformation, determine I Circuit Parameters V₂ ww Vs = 18 V R₁ R3 IA = 2 A Vs R₁ = 30 R₂= 62 R3=252 R4=492 R₂ www HII R4
