1. Given the System below Create PLC Program that follows the condition: a. Main Switch Breaker needed to run the whole

[answerhappygod]

1 Given The System Below Create Plc Program That Follows The Condition A Main Switch Breaker Needed To Run The Whole 1 (118.06 KiB) Viewed 32 times

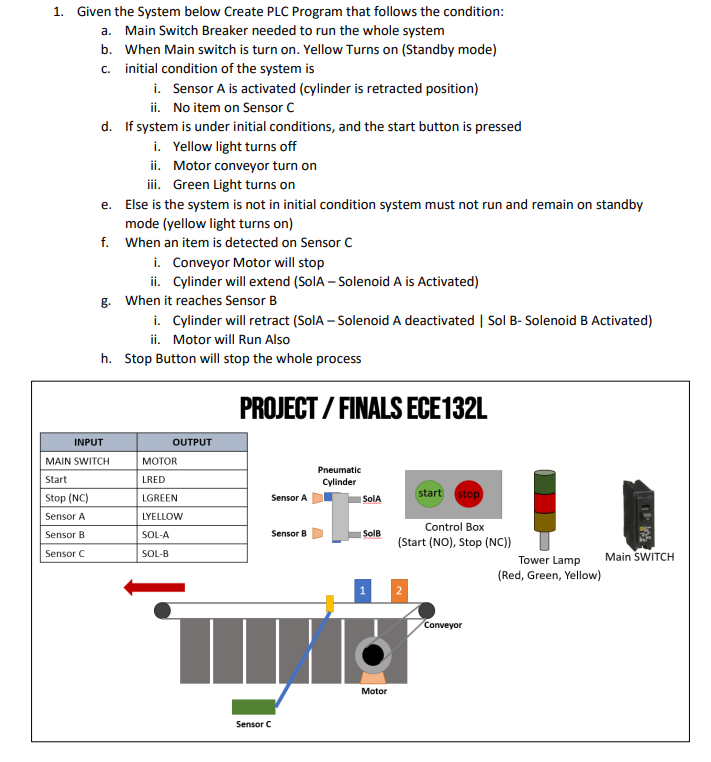

1. Given the System below Create PLC Program that follows the condition: a. Main Switch Breaker needed to run the whole system b. When Main switch is turn on. Yellow Turns on (Standby mode) c. initial condition of the system is i. Sensor A is activated (cylinder is retracted position) ii. No item on Sensor C d. If system is under initial conditions, and the start button is pressed i. Yellow light turns off ii. Motor conveyor turn on iii. Green Light turns on e. Else is the system is not in initial condition system must not run and remain on standby mode (yellow light turns on) f. When an item is detected on Sensor C i. Conveyor Motor will stop ii. Cylinder will extend (SolA-Solenoid A is Activated) g. When it reaches Sensor B i. Cylinder will retract (SolA - Solenoid A deactivated | Sol B-Solenoid B Activated) ii. Motor will Run Also h. Stop Button will stop the whole process PROJECT / FINALS ECE 132L OUTPUT Pneumatic Cylinder start stop Sensor A Control Box Sensor B (Start (NO), Stop (NC)) Tower Lamp Main SWITCH (Red, Green, Yellow) Conveyor INPUT MAIN SWITCH Start Stop (NC) Sensor A Sensor B Sensor C MOTOR LRED LGREEN LYELLOW SOL-A SOL-B Sensor C SolA SolB Motor
