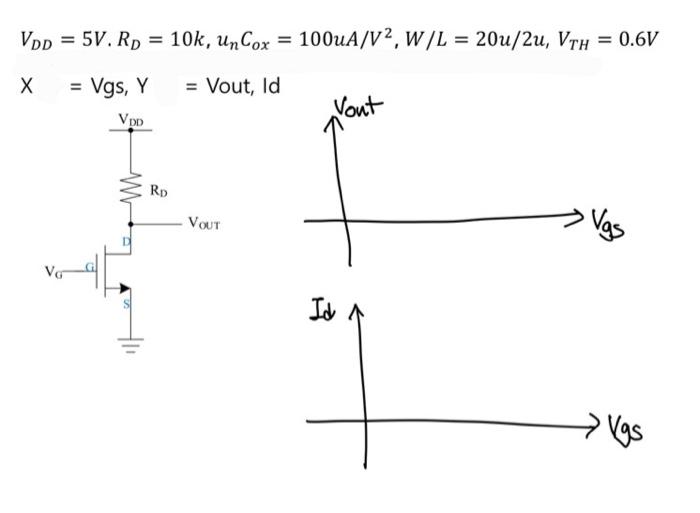

VDD = 5V. RD = 10k, unCox = 100uA/V2, W/L = 20u/2u, VTH = 0.6V X = Vgs, Y = Vout, Id Vont VDD Vas VOUT RD Id → Vgs
