Consider the following NMOS transistor's V-l characteristics and load circuit. Given supply voltage V DO-4V, threshold v

[answerhappygod]

Consider The Following Nmos Transistor S V L Characteristics And Load Circuit Given Supply Voltage V Do 4v Threshold V 1 (30.29 KiB) Viewed 18 times

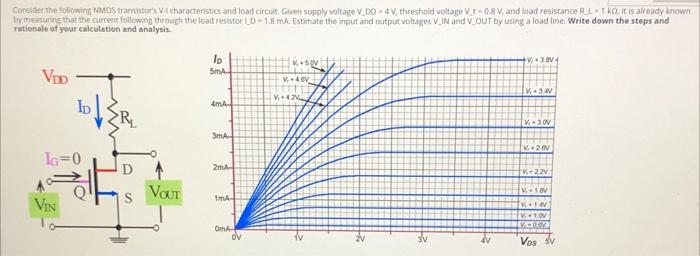

Consider the following NMOS transistor's V-l characteristics and load circuit. Given supply voltage V DO-4V, threshold voltage V1-0.8V, and load resistance R.L-1 k0, it is already known by measuring that the current following through the load resistor LD-1.8 mA. Estimate the input and output voltages V IN and V OUT by using a load line. Write down the steps and rationale of your calculation and analysis. +V+3.0V4 lo 5mA VDD V, 4.0V V₁.34 V-30V V-20V v-22V V-18V V 14V V..10V VED Vos Sv ID IG=0 VIN S VOUT 4mA 3mA 2mA 1mA- OmA V 42
