Figure (1) shows a message signal to be transmitted using pulse modulation techniques. 10) Write the equation that repre

[answerhappygod]

Figure 1 Shows A Message Signal To Be Transmitted Using Pulse Modulation Techniques 10 Write The Equation That Repre 1 (152.95 KiB) Viewed 38 times

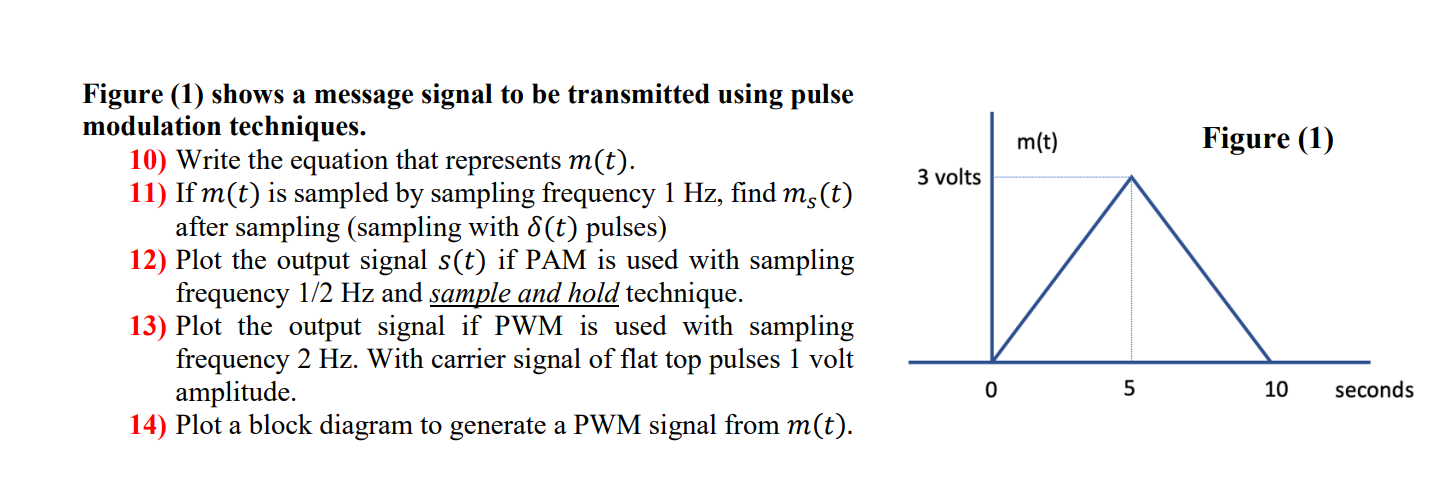

Figure (1) shows a message signal to be transmitted using pulse modulation techniques. 10) Write the equation that represents m(t). 11) If m(t) is sampled by sampling frequency 1 Hz, find mç (t) after sampling (sampling with 8(t) pulses) 12) Plot the output signal s(t) if PAM is used with sampling frequency 1/2 Hz and sample and hold technique. 13) Plot the output signal if PWM is used with sampling frequency 2 Hz. With carrier signal of flat top pulses 1 volt amplitude. 14) Plot a block diagram to generate a PWM signal from m(t). 3 volts 0 m(t) 5 Figure (1) 10 seconds
