RD = 750
RS = 3500
- Idss 3 Mavgs Off 2 4 V Rd 750 Rs 3500 1 (23.13 KiB) Viewed 24 times
IDSS = 3 mAVGS (off) = - 2.4 V RD = 750 RS = 3500
-
answerhappygod
- Site Admin
- Posts: 899603
- Joined: Mon Aug 02, 2021 8:13 am
IDSS = 3 mAVGS (off) = - 2.4 V RD = 750 RS = 3500
IDSS = 3 mAVGS (off) = - 2.4 V
RD = 750
RS = 3500

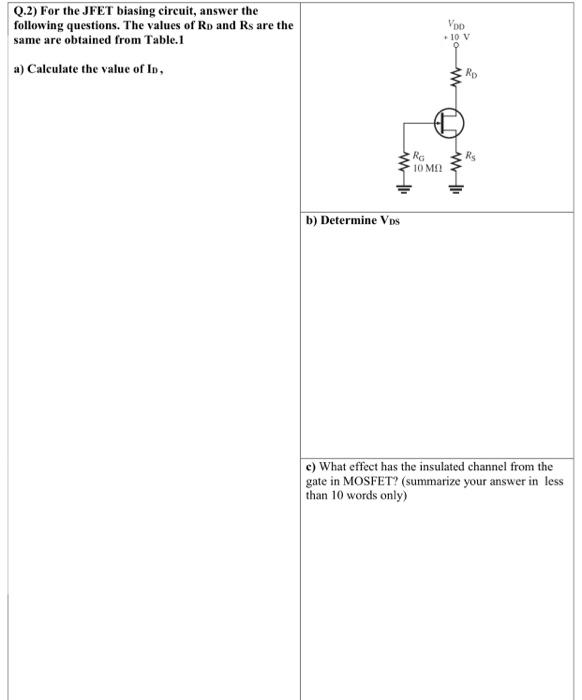

Q.2) For the JFET biasing circuit, answer the following questions. The values of RD and Rs are the same are obtained from Table.1 a) Calculate the value of ID, RG 10 M Voo 10 V Ro 2 www b) Determine Vps e) What effect has the insulated channel from the gate in MOSFET? (summarize your answer in less than 10 words only)
RD = 750
RS = 3500
Q.2) For the JFET biasing circuit, answer the following questions. The values of RD and Rs are the same are obtained from Table.1 a) Calculate the value of ID, RG 10 M Voo 10 V Ro 2 www b) Determine Vps e) What effect has the insulated channel from the gate in MOSFET? (summarize your answer in less than 10 words only)
