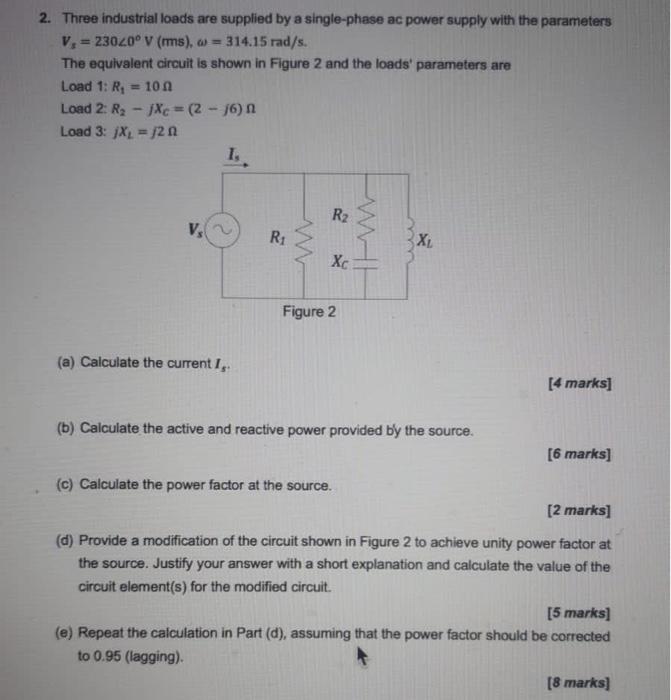

2. Three industrial loads are supplied by a single-phase ac power supply with the parameters V, = 23020° V (mms), a= 314.15 rad/s. The equivalent circuit is shown in Figure 2 and the loads' parameters are Load 1: R₁ = 100 Load 2: R₂-JXc = (2-16) n Load 3: JX₂ = 120 1, V₂ Figure 2 (a) Calculate the current I [4 marks] (b) Calculate the active and reactive power provided by the source. [6 marks] (c) Calculate the power factor at the source. [2 marks] (d) Provide a modification of the circuit shown in Figure 2 to achieve unity power factor at the source. Justify your answer with a short explanation and calculate the value of the circuit element(s) for the modified circuit. [5 marks] (e) Repeat the calculation in Part (d), assuming that the power factor should be corrected to 0.95 (lagging). [8 marks] R₁ R₂ Xc WH ww XL
