For the system described by the block diagram shown in Figure Q4 below, do the following: a) Derive a set of state space

Post by answerhappygod »

For The System Described By The Block Diagram Shown In Figure Q4 Below Do The Following A Derive A Set Of State Space 1
For The System Described By The Block Diagram Shown In Figure Q4 Below Do The Following A Derive A Set Of State Space 1 (92.13 KiB) Viewed 32 times

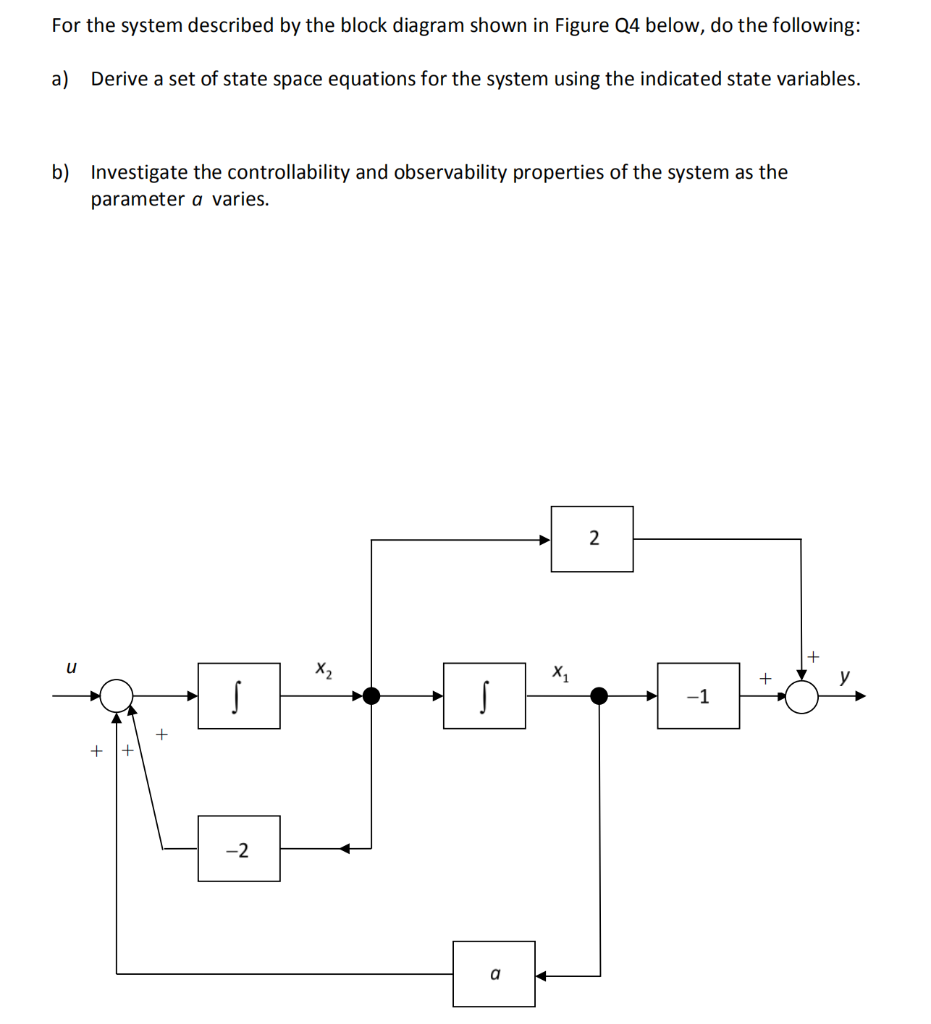

For the system described by the block diagram shown in Figure Q4 below, do the following: a) Derive a set of state space equations for the system using the indicated state variables. b) Investigate the controllability and observability properties of the system as the parameter a varies. 2 S -2 + + S a X₁ -1
