In your own words, explain why the circuit shown in Figure 3.2 is regarded as a logical inverter. Comment on the perform

Post by answerhappygod »

In Your Own Words Explain Why The Circuit Shown In Figure 3 2 Is Regarded As A Logical Inverter Comment On The Perform 1
In Your Own Words Explain Why The Circuit Shown In Figure 3 2 Is Regarded As A Logical Inverter Comment On The Perform 1 (29.98 KiB) Viewed 114 times

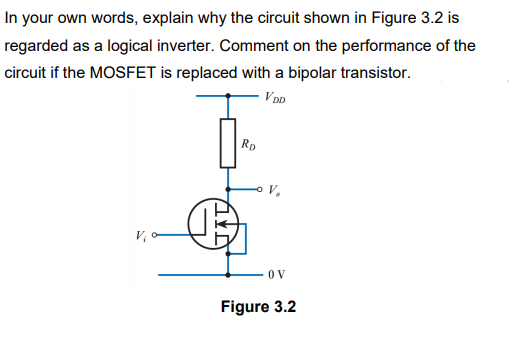

In your own words, explain why the circuit shown in Figure 3.2 is regarded as a logical inverter. Comment on the performance of the circuit if the MOSFET is replaced with a bipolar transistor. VDD V₁ [カウ B RD V. OV Figure 3.2
