Q2 (a) As part of a radio receiver, you are asked to design a simple bandpass filter using a series inductor, capacitor

[answerhappygod]

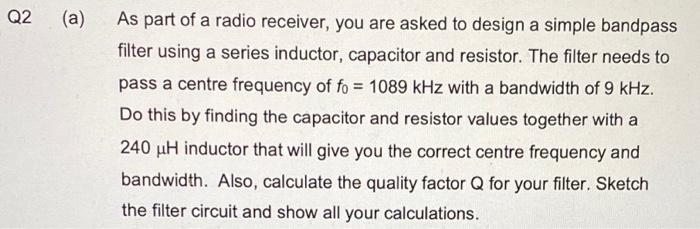

Q2 A As Part Of A Radio Receiver You Are Asked To Design A Simple Bandpass Filter Using A Series Inductor Capacitor 1 (33.56 KiB) Viewed 22 times

Q2 (a) As part of a radio receiver, you are asked to design a simple bandpass filter using a series inductor, capacitor and resistor. The filter needs to pass a centre frequency of fo = 1089 kHz with a bandwidth of 9 kHz. Do this by finding the capacitor and resistor values together with a 240 µH inductor that will give you the correct centre frequency and bandwidth. Also, calculate the quality factor Q for your filter. Sketch the filter circuit and show all your calculations.
