For the circuit below, V₂ = 5sin (2π X 200MHz × t) Solve for Vc: voltage across the capacitor. Please put your answer in

Post by answerhappygod »

1
1 (102.38 KiB) Viewed 20 times

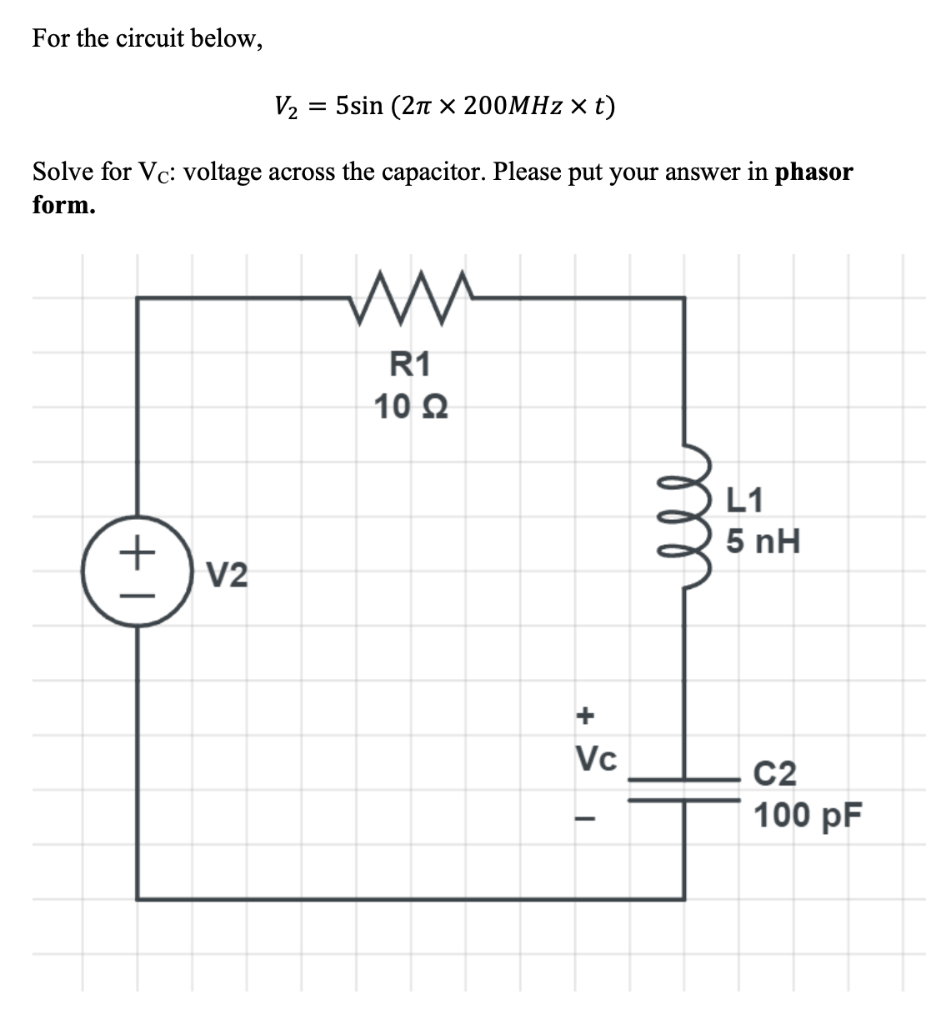

For the circuit below, V₂ = 5sin (2π X 200MHz × t) Solve for Vc: voltage across the capacitor. Please put your answer in phasor form. ww R1 10.02 +1 V2 + Vc - m L1 5 nH C2 100 pF
