b) Three single phase transformers each having a 240 V primary and two 250 V secondaries, as shown in the figure below.

Post by answerhappygod »

B Three Single Phase Transformers Each Having A 240 V Primary And Two 250 V Secondaries As Shown In The Figure Below 1

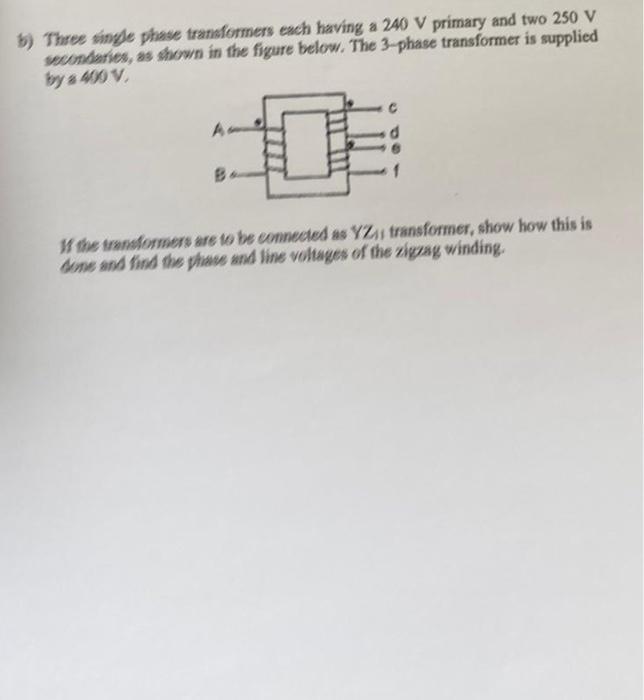

B Three Single Phase Transformers Each Having A 240 V Primary And Two 250 V Secondaries As Shown In The Figure Below 1 (23.46 KiB) Viewed 33 times
b) Three single phase transformers each having a 240 V primary and two 250 V secondaries, as shown in the figure below. The 3-phase transformer is supplied by a 400 V. D If the transformers are to be connected as YZ transformer, show how this is done and find the phase and line voltages of the zigzag winding.
