T₁ T3 + Ud Us la T₂ A single-phase full-bridge thyristor rectifier, as shown above, is supplied with an AC voltage of 23

Post by answerhappygod »

T T3 Ud Us La T A Single Phase Full Bridge Thyristor Rectifier As Shown Above Is Supplied With An Ac Voltage Of 23 1
T T3 Ud Us La T A Single Phase Full Bridge Thyristor Rectifier As Shown Above Is Supplied With An Ac Voltage Of 23 1 (97.26 KiB) Viewed 19 times

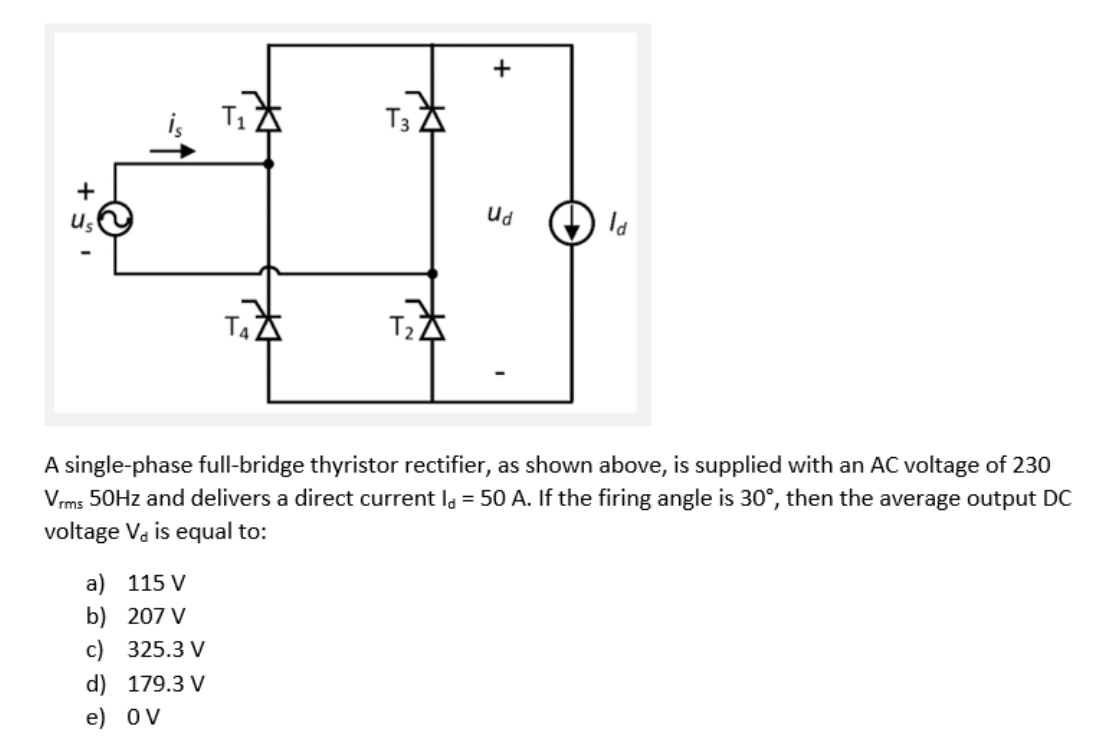

T₁ T3 + Ud Us la T₂ A single-phase full-bridge thyristor rectifier, as shown above, is supplied with an AC voltage of 230 Vrms 50Hz and delivers a direct current la = 50 A. If the firing angle is 30°, then the average output DC voltage V, is equal to: a) 115 V b) 207 V c) 325.3 V d) 179.3 V e) OV
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
