A 220 kV, 200 km, balanced 3-phase lossless line. The line has the following series- impedance and shunt-admittance, x =

Post by answerhappygod »

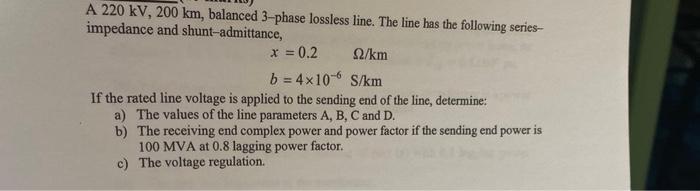

A 220 Kv 200 Km Balanced 3 Phase Lossless Line The Line Has The Following Series Impedance And Shunt Admittance X 1
A 220 Kv 200 Km Balanced 3 Phase Lossless Line The Line Has The Following Series Impedance And Shunt Admittance X 1 (17.35 KiB) Viewed 47 times
A 220 kV, 200 km, balanced 3-phase lossless line. The line has the following series- impedance and shunt-admittance, x = 0.2 Ω/km b=4x10 S/km If the rated line voltage is applied to the sending end of the line, determine: a) The values of the line parameters A, B, C and D. b) The receiving end complex power and power factor if the sending end power is 100 MVA at 0.8 lagging power factor. c) The voltage regulation.
