1:1 N:1 492 N:1 1:1 Q2 a/ Write the ACLL and DCLL equations and plot them (consider N as a constant). b/ Given that the

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899603
Joined: Mon Aug 02, 2021 8:13 am

1:1 N:1 492 N:1 1:1 Q2 a/ Write the ACLL and DCLL equations and plot them (consider N as a constant). b/ Given that the

Post by answerhappygod »

1 1 N 1 492 N 1 1 1 Q2 A Write The Acll And Dcll Equations And Plot Them Consider N As A Constant B Given That The 1
1 1 N 1 492 N 1 1 1 Q2 A Write The Acll And Dcll Equations And Plot Them Consider N As A Constant B Given That The 1 (84.42 KiB) Viewed 51 times

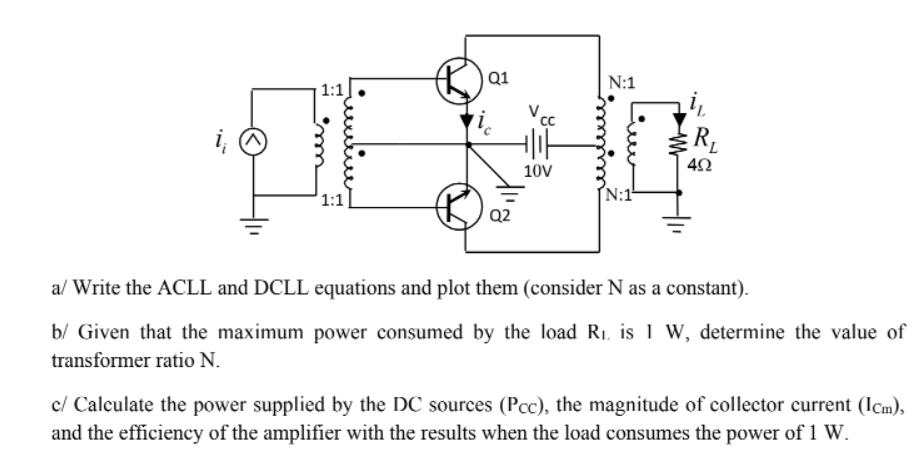

1:1 N:1 492 N:1 1:1 Q2 a/ Write the ACLL and DCLL equations and plot them (consider N as a constant). b/ Given that the maximum power consumed by the load R₁, is 1 W, determine the value of transformer ratio N. c/ Calculate the power supplied by the DC sources (Pcc), the magnitude of collector current (Icm), and the efficiency of the amplifier with the results when the load consumes the power of 1 W. Q1 www. V cc 10V M 2. R₁
