This shows a* 1KQ 10nF low pass filter high pass filter notch filter band-stop filter Disadvantages of phase shift oscil

Post by answerhappygod »

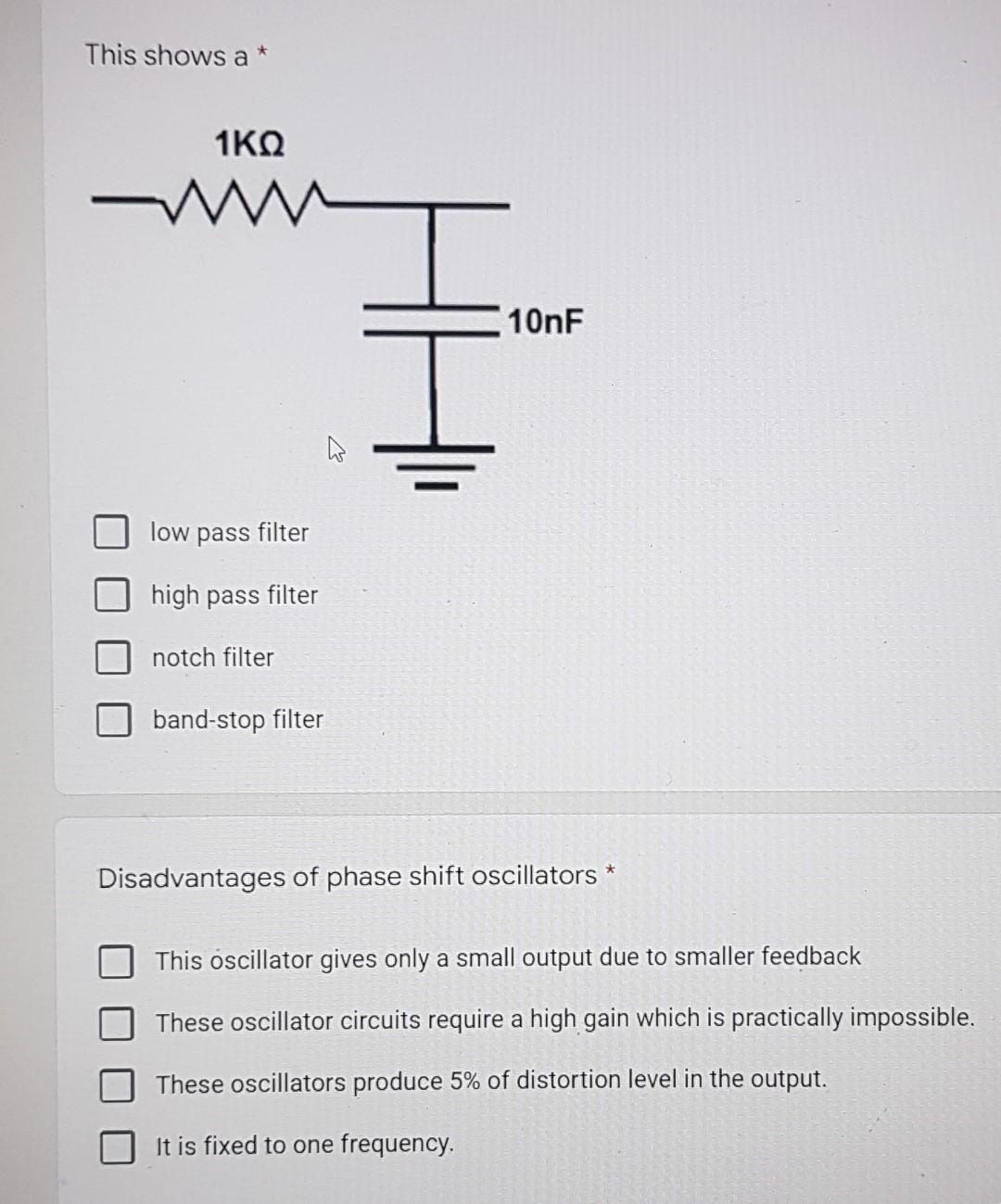

This Shows A 1kq 10nf Low Pass Filter High Pass Filter Notch Filter Band Stop Filter Disadvantages Of Phase Shift Oscil 1
This Shows A 1kq 10nf Low Pass Filter High Pass Filter Notch Filter Band Stop Filter Disadvantages Of Phase Shift Oscil 1 (122.5 KiB) Viewed 42 times
asap
This shows a* 1KQ 10nF low pass filter high pass filter notch filter band-stop filter Disadvantages of phase shift oscillators * This oscillator gives only a small output due to smaller feedback These oscillator circuits require a high gain which is practically impossible. These oscillators produce 5% of distortion level in the output. It is fixed to one frequency.
