Find the potential difference between points A and C, (VA-VC =?) by assuming the electric field is E₁ for R

[answerhappygod]

Find The Potential Difference Between Points A And C Va Vc By Assuming The Electric Field Is E For R R1 E For R 1 (48.21 KiB) Viewed 21 times

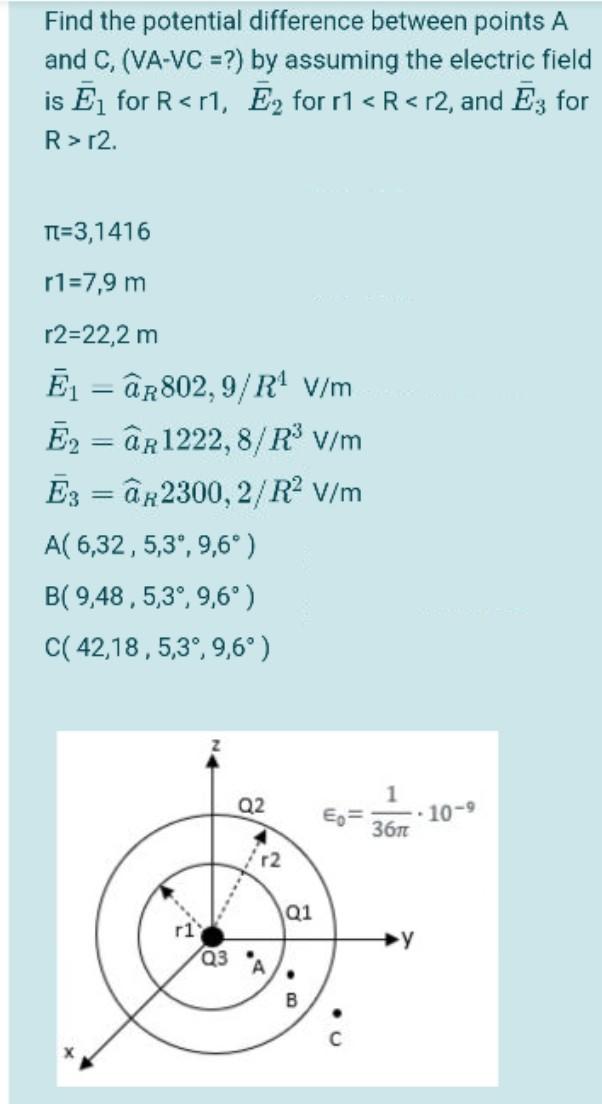

Find the potential difference between points A and C, (VA-VC =?) by assuming the electric field is E₁ for R<r1, E₂ for r1 <R<r2, and E3 for R> r2. T=3,1416 r1=7,9 m r2=22,2 m E₁ R802, 9/R¹ V/m - E2 = ar 1222, 8/R³ V/m E3 = R2300, 2/R² V/m A(6,32, 5,3°, 9,6°) B(9,48, 5,3°, 9,6°) C( 42,18, 5,3°, 9,6°) Q2 r1 Q3 r2 Q1 B C 1 36m у 10-9
